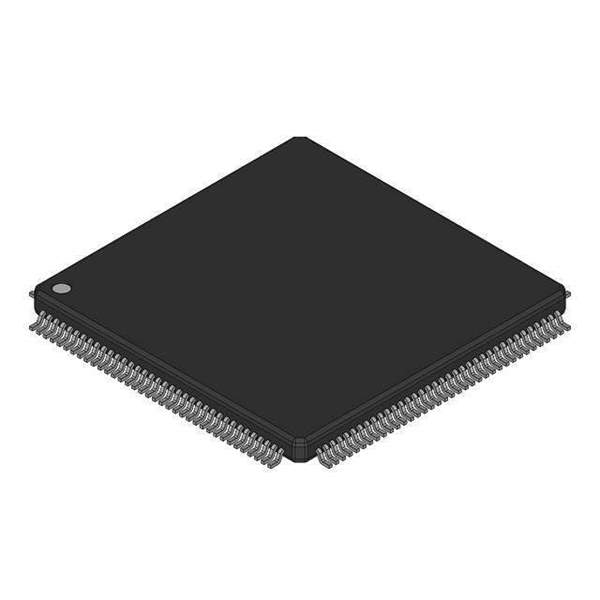

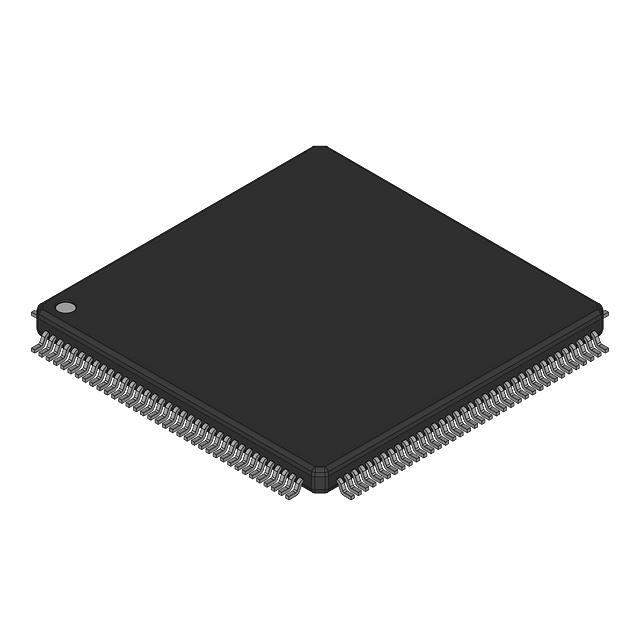

The Intel (formerly Altera) EPM1270GT144C5 is a complex programmable logic device (CPLD) from the MAX II family. This CPLD is designed for a wide range of applications requiring programmable logic, offering a balance of performance, power efficiency, and cost.

Applications

• Interface Bridging: Used for bridging different interfaces in embedded systems.
• Address Decoding: Employed in memory and peripheral address decoding circuits.
• Glue Logic: Utilized as glue logic to connect various components within a system.
• Power Management: Applied in power management circuits for controlling power distribution.
• Motor Control: Used in motor control applications for implementing control logic.
• Custom Logic Functions: Applied to implement custom logic functions tailored for specific application needs.

Features

• Logic Elements: Contains 1,270 logic elements (LEs).
• I/O Pins: Features 116 user I/O pins.
• Package: Available in a 144-pin thin quad flat pack (TQFP) package.
• Operating Voltage: Operates at a 2.5V or 3.3V core voltage.
• Global Clock Networks: Provides up to four global clock networks for precise timing.
• In-System Programmability (ISP): Can be programmed in-system, simplifying design changes and updates.
• Low Power Consumption: Designed for low-power operation, making it suitable for portable applications.

Benefits

• High Performance: Delivers high-speed performance for demanding applications.
• Flexibility: Allows for custom hardware implementation of algorithms and protocols, providing flexibility in design.
• Integration: Integrates multiple functions into a single device, reducing board space and system complexity.
• Low Power Consumption: Minimizes power consumption, extending battery life in portable devices.
• Programmability: Enables rapid prototyping and design iteration through in-system programmability.
• Cost-Effective: Provides a cost-effective solution for implementing custom logic circuits.

Additional Details

The EPM1270GT144C5 is programmed using Intel's (Altera's) Quartus Prime software, which provides a comprehensive development environment for design entry, simulation, and implementation. The device also features built-in testability features, enabling thorough testing of the implemented logic. The MAX II family is known for its low power consumption and robust performance, making the Intel EPM1270GT144C5 a reliable solution for a wide range of embedded applications.
