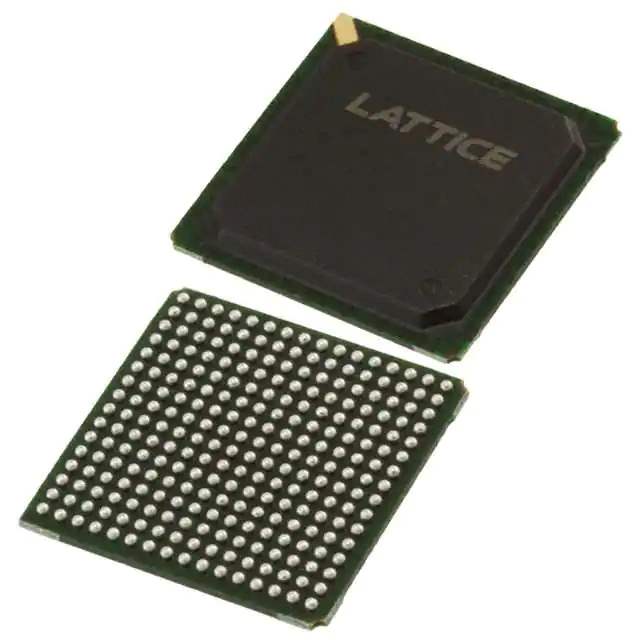

LC5256MB-5FN256I Real Image
Same model may have multiple batches, images only for reference.

LC5256MB-5FN256I

Part No LC5256MB-5FN256I
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 256MC 5NS 256FPBGA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Lattice Semiconductor Corporation
Series ispXPLD® 5000MB
Package Tray
Product Status Obsolete
Programmable Not Verified
Programmable Type In System Programmable
Delay Time tpd(1) Max 5 ns
Voltage Supply - Internal 2.3V ~ 2.7V
Number of Logic Elements/Blocks 8
Number of Macrocells 256
Number of I/O 141
Temperature Range - Operating -40°C ~ 105°C (TJ)
Mounting Type Surface Mount
Package / Case 256-BGA
Supplier Device Package 256-FPBGA (17x17)
Base Product Number LC5256
Standard Package 90 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 876765-LC5256MB-5FN256I
Ultra Librarian 3D Model Ultra Librarian LC5256MB-5FN256I CAD Model

Description

The ispXPLD® 5000MB series is known for its complex programmable logic devices (CPLDs), and the LC5256MB-5FN256I is a member of this series. Manufactured by Lattice Semiconductor Corporation, this CPLD offers 141 I/Os and 8 logic elements/blocks, providing versatile connectivity and processing capabilities.

  • I/Os: 141
  • Logic Elements/Blocks: 8
  • Macrocells: 256
  • Maximum Delay Time: 5 ns
  • Internal Voltage Supply: 2.3V to 2.7V
  • Package: 256-BGA
  • Mounting Technology: Surface Mount
  • Temperature Range: -40°C to 105°C
  • Product Status: Obsolete
