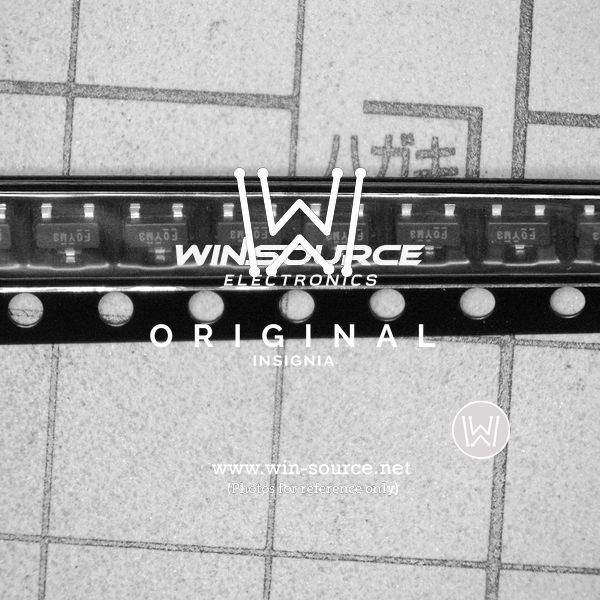

The IRLML6401 is a P-Channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) from International Rectifier. It is designed for low voltage, surface mount applications where minimizing on-state resistance and maximizing efficiency are critical. The P-Channel configuration makes it suitable for high-side switching applications.

Applications:

• Load Switching
• High-Side Switching
• Portable Devices
• Battery Management Systems
• DC-DC Conversion

Features:

• Low On-Resistance (RDS(on))
• Logic-Level Gate Drive
• Surface Mount Package (SOT-23)
• P-Channel Configuration
• Fast Switching Speed

Benefits:

• Increased efficiency due to low conduction losses
• Direct interface with logic-level control circuits
• Compact footprint for space-constrained applications
• Simplified high-side switching implementation
• Reduced switching losses

Additional Details:

The IRLML6401 boasts a low on-resistance (RDS(on)), minimizing conduction losses and improving overall efficiency. The logic-level gate drive allows it to be directly driven by microcontrollers and other low-voltage control circuits, simplifying circuit design. Its small SOT-23 package makes it ideal for portable devices and other space-constrained applications. Being a P-Channel MOSFET, it is commonly used for high-side switching, where the load is switched on the positive side of the power supply. The fast switching speed minimizes switching losses. It has a drain-source voltage (VDS) rating of -20V and a continuous drain current (ID) rating of -3.7A. The compact size and efficient performance of the IRLML6401 make it a suitable choice for a variety of low-voltage power management applications.
