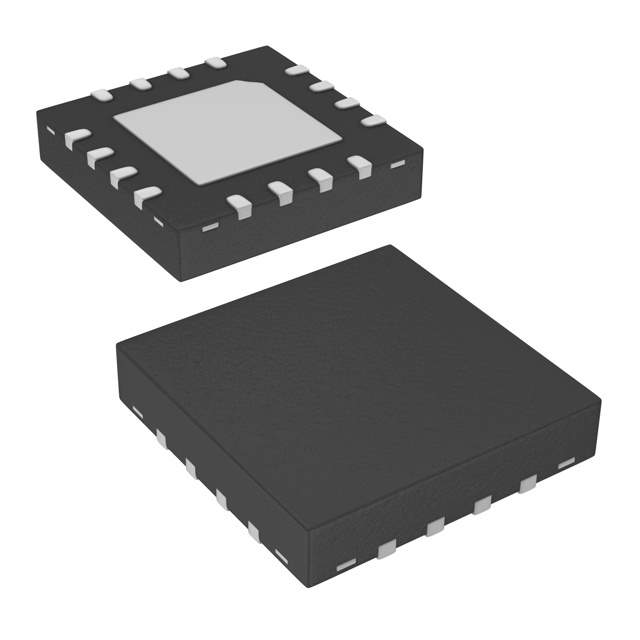

HIP2101IRZT

Name: HIP2101IRZT
Brand: Intersil
SKU: 776024
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	HIP2101IRZT
Manufacturer	Intersil
Catalog	PMIC - Gate Drivers
Description	IC DRVR HALF BRIDGE 100V 16-QFN / Driver 2A 2-OUT High and Low Side Half Brdg Non-Inv 16-Pin QFN EP T/R
Datasheet	HIP2101IRZT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Manufacturer	Intersil
Packaging	Reel package
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Operating Supply Voltage	9 V ~ 14 V
Logic Voltage - VIL, VIH	0.8V, 2.2V
Current - Peak Output (Source, Sink)	2A, 2A
High Side Voltage - Max (Bootstrap)	114V
Rise / Fall Time (Typ)	10ns, 10ns
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	SMD
Package	16-VQFN Exposed Pad
Manufacturer Package	16-QFN-EP (5x5)
Win Source Part Number	776024-HIP2101IRZT
Popularity	Medium
Supply and Demand Status	Limited
Family Name	HIP2101
Introduction Date	August 29, 2000
ECCN	EAR99
Country of Origin	Malaysia
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian HIP2101IRZT CAD Model

Alternative Products

Description

The Intersil HIP2101IRZT is a 16-VQFN Exposed Pad packaged IC that operates within a temperature range of -55°C to 150°C (TJ).

Mounting: SMD
Operating Supply Voltage: 9 V to 14 V
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: Two
Gate Type: N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.2V
Current - Peak Output (Source, Sink): 2A, 2A
High Side Voltage - Max (Bootstrap): 114V
Rise / Fall Time (Typ): 10ns, 10ns
Category: Integrated Circuits (ICs)
ECCN: EAR99
Supply and Demand Status: Limited
Other Part Numbers: LM5100BSD/NOPB, MIC4100BM TR, MIC4100BM, MIC4100YM
