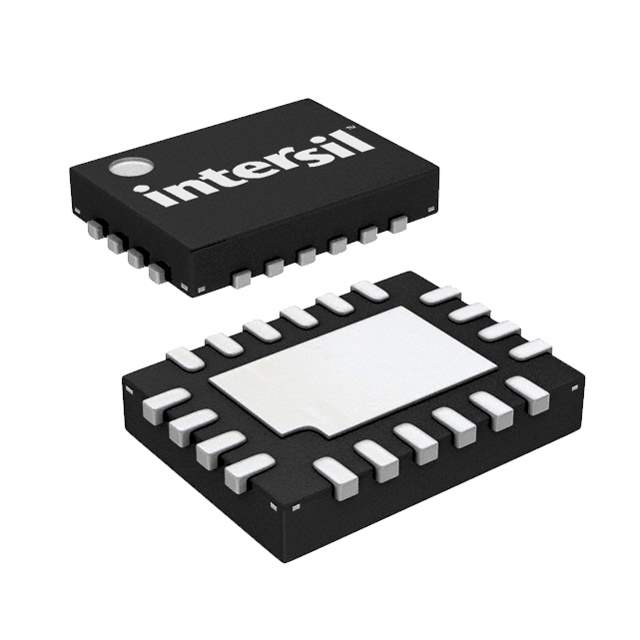

ISL97694AIRTZ Real Image
Same model may have multiple batches, images only for reference.

ISL97694AIRTZ

Part No ISL97694AIRTZ
Manufacturer Intersil
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 20TQFN
Datasheet
ISL97694AIRTZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Operating Input Voltage(Min) 2.4V
Maximum Supply Voltage 5.5V
Output Voltage 26V
Channel Output Current 30mA
Frequency 400kHz to 1.5MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 20-QFN (3x4)
Win Source Part Number 1049015-ISL97694AIRTZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL97694AIRTZ CAD Model

Description

The Intersil ISL97694AIRTZ is a DC-DC regulator designed for use in backlight applications.

  • Frequency: 400kHz to 1.5MHz
  • Internal Switch: Yes
  • Topology: Step-up (boost)
  • Outputs: Six
  • Dimming: PWM
  • Output Voltage: 26V
  • Maximum Supply Voltage: 5.5V
  • Operating Input Voltage (min): 2.4V
  • Channel Output Current: 30mA
  • Case/Package: 20-QFN (3x4)
  • Temperature Range: -40°C to 85°C (TA)
  • Supply and Demand Status: Balanced
