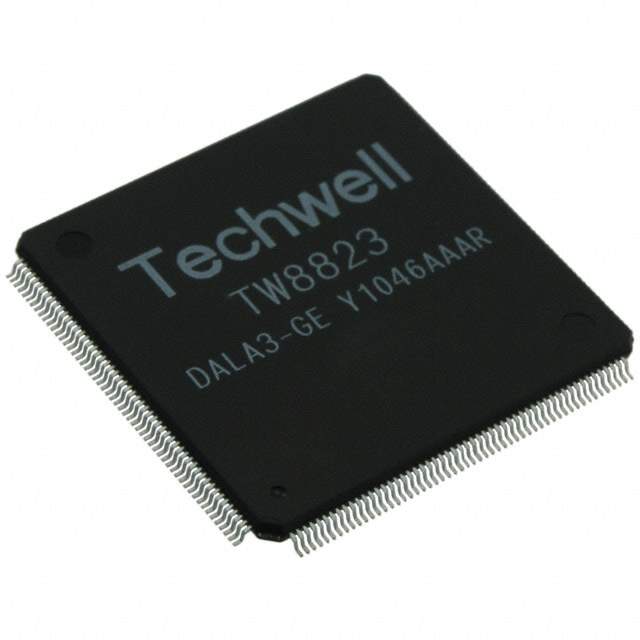

The TW8823-LA3-GE is a highly integrated LCD video processor from Intersil, designed for automotive display applications. This processor combines a video decoder, scaler, and display controller into a single chip, offering a cost-effective and compact solution for in-car entertainment and information systems.

Applications:

• Automotive head units
• Rear seat entertainment systems
• Dashboard displays
• Car navigation systems
• Rear-view camera systems

Features:

• Analog video inputs (CVBS, S-Video, YPbPr)
• Integrated video decoder supporting NTSC, PAL, and SECAM standards
• High-quality scaler for flexible display resolution
• On-Screen Display (OSD) controller
• Multiple display output formats (RGB, TTL)
• Built-in audio processor
• I2C interface for control and configuration

Benefits:

• Integrated solution: Combines multiple functions into a single chip, reducing system cost and complexity.
• High-quality video: Delivers crisp and clear video images for an enhanced viewing experience.
• Flexible display resolution: Supports a wide range of display resolutions, allowing for compatibility with various LCD panels.
• Customizable display: On-Screen Display (OSD) controller allows for the creation of custom menus and graphics.
• Easy system integration: The I2C interface simplifies control and configuration, making it easy to integrate the TW8823-LA3-GE into various systems.
• Optimized for automotive applications: Designed to meet the demanding requirements of the automotive environment, including temperature and vibration resistance.

Additional Details:

The TW8823-LA3-GE typically operates from a 3.3V power supply. It is packaged in a LQFP (Low Profile Quad Flat Package). It provides control over display parameters through an I2C interface. Refer to the Intersil datasheet for specific electrical characteristics, application circuits, and recommended layout guidelines.
