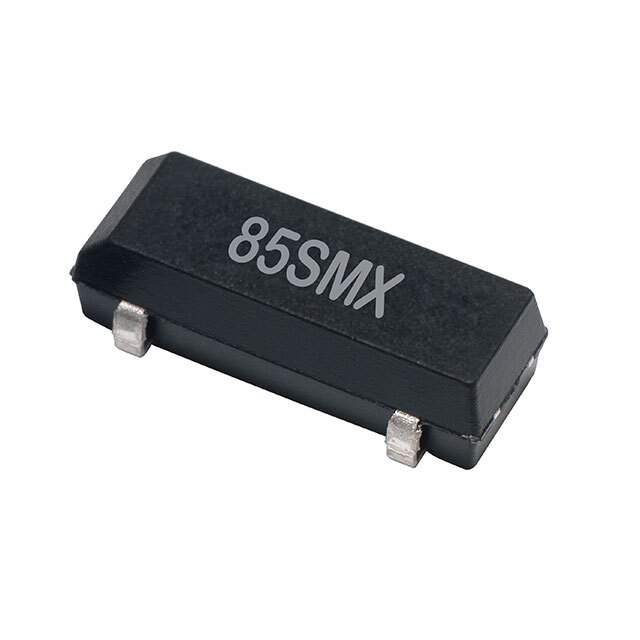

LFXTAL003000REEL Real Image
Same model may have multiple batches, images only for reference.

LFXTAL003000REEL

Part No LFXTAL003000REEL
Manufacturer IQD Frequency Products Ltd
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 50 kOhms 4-SOJ, 5.5mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr IQD Frequency Products
Series 85SMX
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 50 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SOJ, 5.5mm pitch
Dimension 0.343" L x 0.150" W (8.70mm x 3.80mm)
Height - Seated (Max) 0.098" (2.50mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Other Names 1923-1019-1,LFXTAL003000CUTT,1923-1019-2,1923-1019-6
Standard Package 3,000
Win Source Part Number 1016438-LFXTAL003000REEL
Ultra Librarian 3D Model Ultra Librarian LFXTAL003000REEL CAD Model

Description

The kHz Crystal is a high-quality electronic component from IQD Frequency Products with a frequency of 32.768 kHz.

  • Frequency Tolerance: ±20ppm
  • ESR (Equivalent Series Resistance): 50 kOhms
  • Load Capacitance: 12.5pF
  • Operating Mode: fundamental
  • Win Source Part Number: 1016438-LFXTAL003000REEL
  • Package Type: tape and reel
  • Package Dimensions: 0.343 inches L x 0.150 inches W (8.70mm x 3.80mm)
