Same model may have multiple batches, images only for reference.

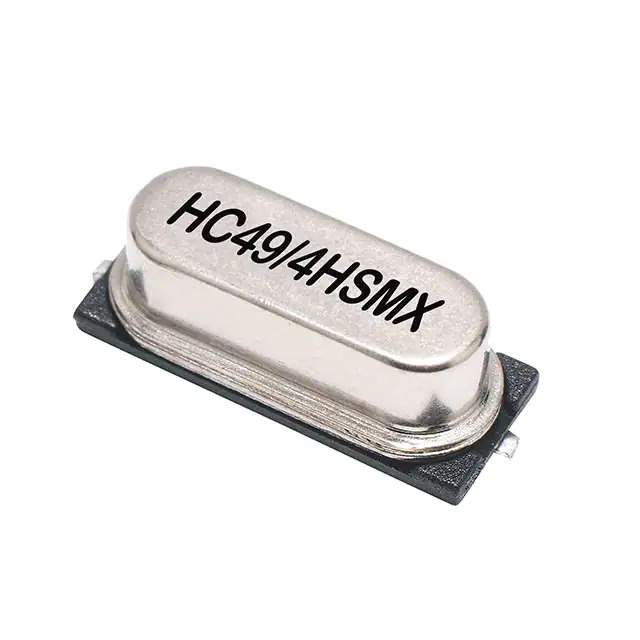

LFXTAL003237REEL Real Image
Same model may have multiple batches, images only for reference.

LFXTAL003237REEL

Part No LFXTAL003237REEL
Manufacturer IQD Frequency Products Ltd
Catalog Oscillators
Description CRYSTAL 16.0000MHZ 16PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr IQD Frequency Products Ltd
Series HC49/4HSMX
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 16pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.449" L x 0.150" W (11.40mm x 3.80mm)
Height - Seated (Max) 0.169" (4.30mm)
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
California Prop 65 Warning Information
Win Source Part Number 877069-LFXTAL003237REEL
Ultra Librarian 3D Model Ultra Librarian LFXTAL003237REEL CAD Model

Description

The LFXTAL003237REEL is a MHz crystal oscillator integrated circuit.

  • Category: Crystals, Oscillators, Resonators - Crystals
  • Series: HC49/4HSMX
  • Mounting Type: Surface Mount
  • Frequency: 16 MHz
  • Equivalent Series Resistance (ESR): 40 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 16pF
  • Operating Mode: Fundamental
  • Package: HC-49/US
  • Temperature Range: -10°C to 60°C
  • Product Status: Active
