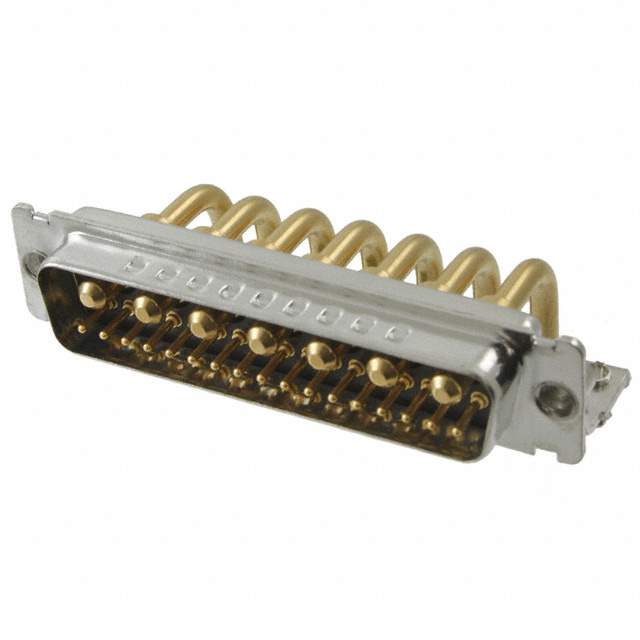

DDMC-24H7P-J-K87 Real Image
Same model may have multiple batches, images only for reference.

DDMC-24H7P-J-K87

Part No DDMC-24H7P-J-K87
Manufacturer ITT Cannon, LLC
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 24POS R/A SLDR / 24 (17 + 7 Power) Position D-Sub, Combo Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr ITT Cannon, LLC
Series Combo D®, D*M
Package Bulk
Connector Style D-Sub, Combo
Connector Type Plug, Male Pins
Number of Positions 24 (17 + 7 Power)
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 5 (DD, D) - 24W7
Contact Type Signal and Power
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A, 40A
Backset Spacing 0.454" (11.53mm)
Features Board Lock, Grounding Indents, Mounting Brackets, Shielded
Color Black
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Standard Package 15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1341506-DDMC-24H7P-J-K87
Ultra Librarian 3D Model Ultra Librarian DDMC-24H7P-J-K87 CAD Model

Description

The 1341506-DDMC-24H7P-J-K87 is a D-sub connector assembly manufactured by ITT Cannon, LLC.

  • Series: Combo D®, D*M
  • Positions: 24 (17 + 7 Power)
  • Color: Black
  • Board Lock: Yes
  • Grounding Indents: Yes
  • Mounting Brackets: Yes
  • Shielded: Yes
  • Connector Type: Plug, Male Pins
  • Contact Type: Signal and Power
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold with a flash finish thickness
  • Packaging: Bulk
  • Standard Package: 15
