Same model may have multiple batches, images only for reference.

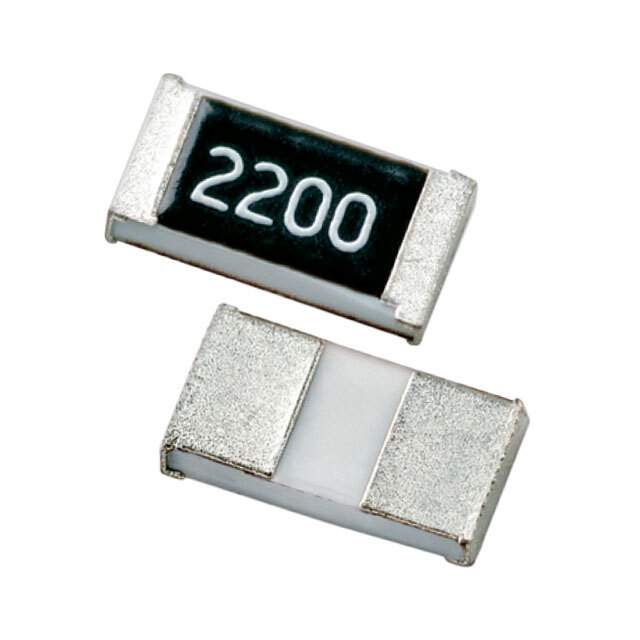

HRG3216P-1002-B-T1 Real Image
Same model may have multiple batches, images only for reference.

HRG3216P-1002-B-T1

Part No HRG3216P-1002-B-T1
Manufacturer Susumu
Catalog Chip Resistor - Surface Mount
Description RES SMD 10K OHM 0.1% 1W 1206 / 10 kOhms ±0.1% 1W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
HRG3216P-1002-B-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Susumu
Series HRG
Package Tape & Reel
Resistance 10 kOhms
Tolerance ±0.1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1337549-HRG3216P-1002-B-T1
Ultra Librarian 3D Model Ultra Librarian HRG3216P-1002-B-T1 CAD Model

Description

The Susumu HRG3216P-1002-B-T1 is a chip resistor with a thin film composition.

  • Resistance: 10 kΩ
  • Power Rating: 1 W
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25 ppm/°C
  • Mounting Type: Surface Mount
  • Case/Package: 1206 (3216 Metric)
  • Packaging: Tape and Reel
  • Pieces Per Reel: 1,000
  • Length: 3.20 mm
  • Width: 1.65 mm
  • Height: 0.55 mm
  • Operating Temperature: -55 °C to 155 °C
  • AEC-Q200: Rated
  • Features: Anti-Sulfur, Moisture-Resistant, Automotive Applications
  • RoHS3 Compliant: Yes
  • REACH Unaffected: Yes
