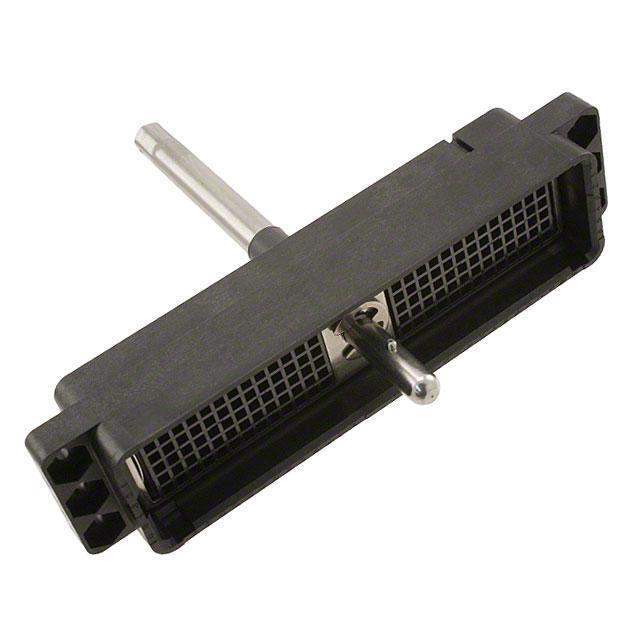

DL1-156P ITT Cannon, LLC
Same model may have multiple batches, images only for reference.

DL1-156P

Part No DL1-156P
Manufacturer ITT Cannon, LLC
Catalog Backplane Connectors
Description CONN HOUSING 156POS BLK PNL MNT
Datasheet
DL1-156P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201112-DL1-156P
Manufacturer ITT Cannon, LLC
Category Connectors, Interconnects- Backplane Connectors -Backplane Connector Housings
Series DL
Package Bulk
Product Status Active
Connector Type Housing for Non-Gendered Contacts
Number of Positions 156
Pitch 0.100" (2.54mm)
Number of Rows 6
Mounting Type Panel Mount
Ultra Librarian 3D Model Ultra Librarian DL1-156P CAD Model

Description

The DL series backplane connector housing from ITT Cannon, LLC is a reliable and high-quality component for use in electronic systems.

  • Contact Gender: Non-gendered
  • Positions: 156
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Panel mount
  • Application: Secure and reliable connection between backplanes and other electronic components.
  • Package: Bulk
  • Market Status: Active
