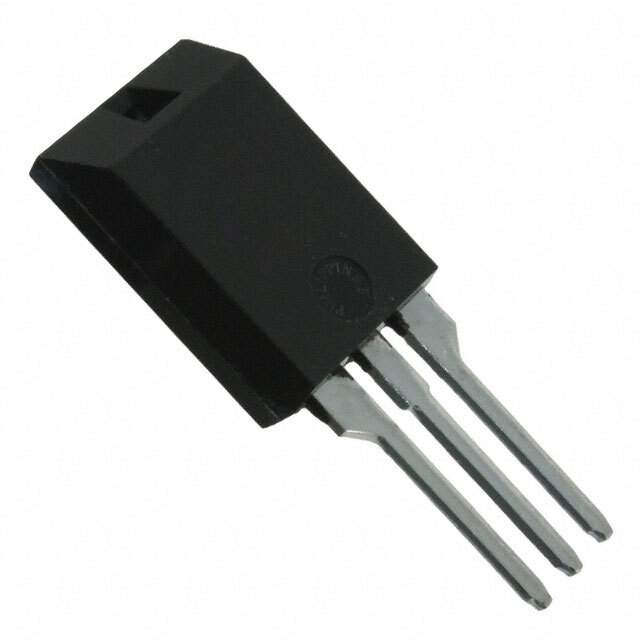

DSP8-12AC Real Image
Same model may have multiple batches, images only for reference.

DSP8-12AC

Part No DSP8-12AC
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY 1200V 11A ISOPLUS220  /  Diode Array 1 Pair Series Connection Standard 1200 V 11A Through Hole ISOPLUS220™
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr IXYS
Package Tube
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 11A
Voltage - Forward (Vf) (Max) @ If 1.22 V @ 10 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 1200 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Through Hole
Package / Case ISOPLUS220™
Supplier Device Package ISOPLUS220™
Base Product Number DSP8
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 50
Win Source Part Number 1003651-DSP8-12AC
Ultra Librarian 3D Model Ultra Librarian DSP8-12AC CAD Model

Description

The IXYS DSP8-12AC is a diode rectifier array with a maximum DC reverse voltage of 1200 V and manufactured by IXYS.

  • Maximum Forward Voltage: 1.22 V @ 10 A
  • Reverse Leakage Current: 10 µA @ 1200 V
  • Average Rectified Current: 11A per diode.
  • Mounting: through-hole
  • Package: ISOPLUS220 package.
  • Operating Temperature Range: -40°C to 150°C
  • ECCN: EAR99 compliant.
