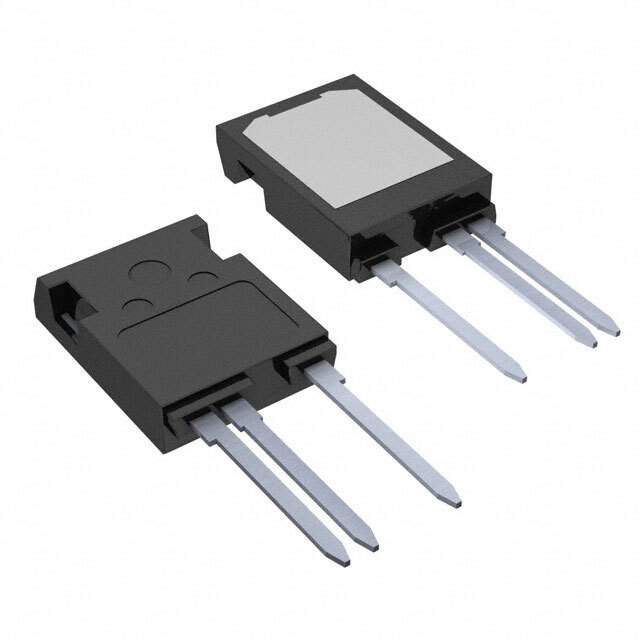

IXBX50N360HV Real Image
Same model may have multiple batches, images only for reference.

IXBX50N360HV

Part No IXBX50N360HV
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 3600V 125A 660W TO-247PLUS / IGBT 3600 V 125 A 660 W Through Hole TO-247PLUS-HV
Datasheet
IXBX50N360HV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Manufacturer IXYS
Packaging Tube
Voltage - Collector Emitter Breakdown (Max) 3600 V
Current - Collector (Ic) (Max) 125 A
Current - Collector Pulsed (Icm) 420 A
Vce(on) (Max) @ Vge, Ic 2.9V @ 15V, 50A
Power - Max 660 W
Input Type Standard
Gate Charge 210 nC
Td (on/off) @ 25°C 46ns/205ns
Test Condition 960V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr) 1.7 µs
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Through Hole
Case / Package TO-247-3 Variant
Supplier Device Package TO-247PLUS-HV
Base Product Number IXBX50
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 30
Win Source Part Number 1324505-IXBX50N360HV
Ultra Librarian 3D Model Ultra Librarian IXBX50N360HV CAD Model

Description

The IXYS 1324505-IXBX50N360HV is a single IGBT transistor that has a voltage - collector emitter breakdown (Max) of 3600 V and a current - collector (Ic) (Max) of 125 A.

  • Voltage - Collector Emitter Breakdown (Max): 3600 V
  • Current - Collector (Ic) (Max): 125 A
  • Maximum Power: 660 W
  • Reverse Recovery Time (trr): 1.7 μs
  • Case/Package: TO-247-3
  • Packaging: Tube
  • Standard Package: 30 units
  • ECCN: EAR99
  • HTSUS: 8541.29.0095
  • ROHS3 Compliant: true
  • MSL Level: 1 (unlimited)
