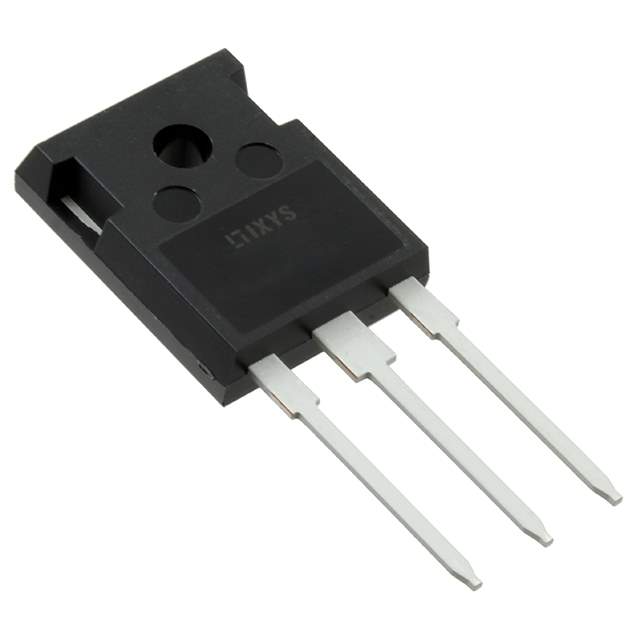

IXFH36N50P Real Image
Same model may have multiple batches, images only for reference.

IXFH36N50P

Part No IXFH36N50P
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 36A TO-247
Datasheet
IXFH36N50P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 36A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 4mA
Max Gate Charge 93nC @ 10V
Max Input Capacitance 5500pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 540W (Tc)
Maximum Rds On at Id,Vgs 170 mOhm @ 500mA, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-247AD (IXFH)
Dimension TO-247-3
Win Source Part Number 1049422-IXFH36N50P
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IXFH36N50P CAD Model

Description

The IXYS 1049422-IXFH36N50P is an N-channel MOSFET that has a power dissipation of 540W (Tc).

  • Package: Tube/Rail
  • Mounting: Through-Hole
  • Drive Voltage: 10V
  • Drain-Source Breakdown Voltage: 500V
  • Continuous Drain Current: 36A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 5V @ 4mA
  • Maximum Gate Charge: 93nC @ 10V
  • Maximum Input Capacitance: 5500pF @ 25V
  • Temperature Range: -55°C to 150°C (TJ)
  • Case/Package: TO-247AD (IXFH)
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
