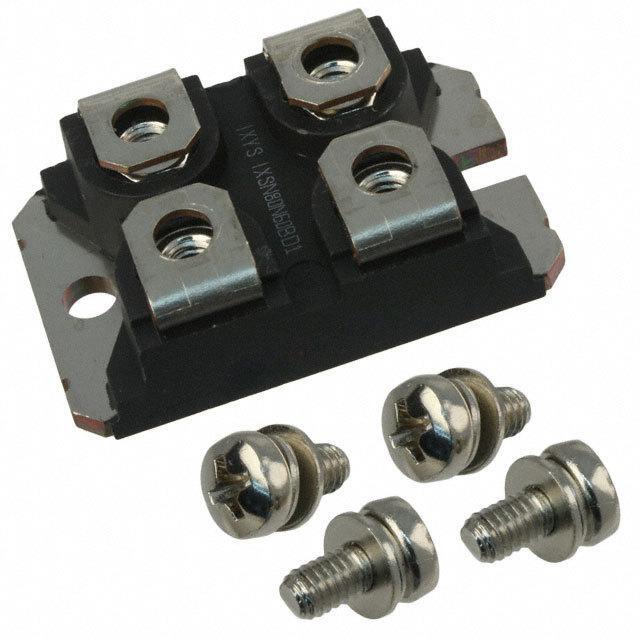

IXSN80N60AU1

Part No IXSN80N60AU1
Manufacturer IXYS
Catalog IGBTs - Modules
Description IGBT 100A 600V SOT-227B / Trans IGBT Module N-CH 600V 160A 500000mW
Datasheet
IXSN80N60AU1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Part Status Obsolete(EOL)
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 160A
Power - Max 500W
Vce(on) (Maximum) @ Vge, Ic 3V @ 15V, 80A
Current - Collector Cutoff (Maximum) 1mA
Input Capacitance (Cies) @ Vce 8.5nF @ 25V
Input Standard
NTC Thermistor No
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Chassis Mount
Package SOT-227-4, miniBLOC
Manufacturer Package SOT-227B
Win Source Part Number 777638-IXSN80N60AU1
Popularity Medium
Supply and Demand Status Limited
Family Name IXSN80N60AU1
Introduction Date September 19, 2000
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IXSN80N60AU1 CAD Model

Description

The IXYS IXSN80N60AU1 is a single configuration power semiconductor product manufactured by IXYS.

  • Current - Collector (Ic) (Maximum): 160A
  • Voltage - Collector Emitter Breakdown (Maximum): 600V
  • Current - Collector Cutoff (Maximum): 1mA
  • Vce(on) (Maximum) @ Vge, Ic: 3V @ 15V, 80A
  • Input Capacitance (Cies) @ Vce: 8.5nF @ 25V
  • Package: SOT-227-4, miniBLOC
  • Operating Temperature Range (TJ): -55°C to 150°C
  • Status: Obsolete (EOL)
