The IXTA16N50P is a N-Channel MOSFET transistor from the Polar series by IXYS. Bold the product name (e.g., BAV99S,135 → IXTA16N50P) and manufacturer (e.g., Nexperia USA Inc. → IXYS).

• Channel Type: N-Channel
• Series: Polar
• Drain-Source Voltage: 500 V
• Continuous Drain Current: 16A @ 25°C
• Rds On: 400mOhm @ 8A drain current and 10V gate-source voltage
• Vgs(th): 5.5V @ 250μA drain current
• Power Dissipation: 300W
• Mounting Type: Surface Mount

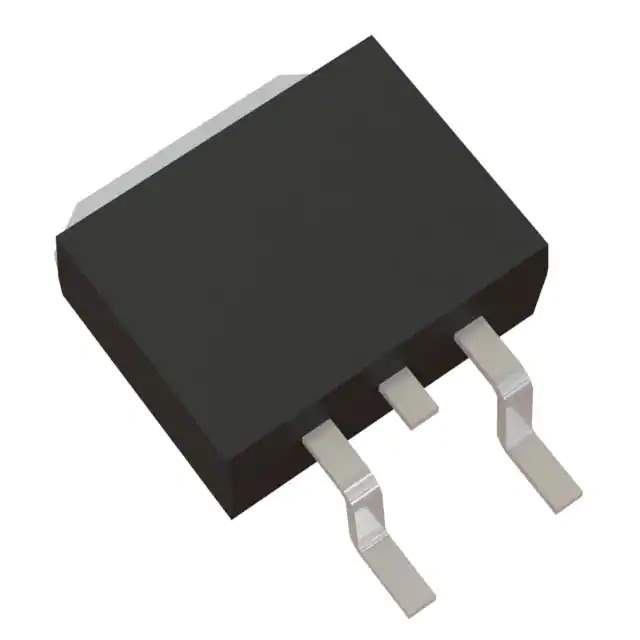

• Package: TO-263-3 (D²Pak)
• Gate Charge: 43 nC @ 10V gate-source voltage
• Input Capacitance: 2250 pF @ 25V drain-source voltage
• Operating Temperature: -55°C to 150°C
• REACH: Compliant
• Status: Active
