IXTA42N25P is an N-channel MOSFET transistor from IXYS. It is part of the Polar series and is designed for use in discrete semiconductor products such as FETs and MOSFETs.

• Channel Type: N-Channel
• Series: Polar
• Product Category: Discrete Semiconductor Products (FETs, MOSFETs)
• Drain to Source Voltage (Vdss): 250 V
• Power Dissipation: 300W (Tc)
• Mounting Type: Surface Mount

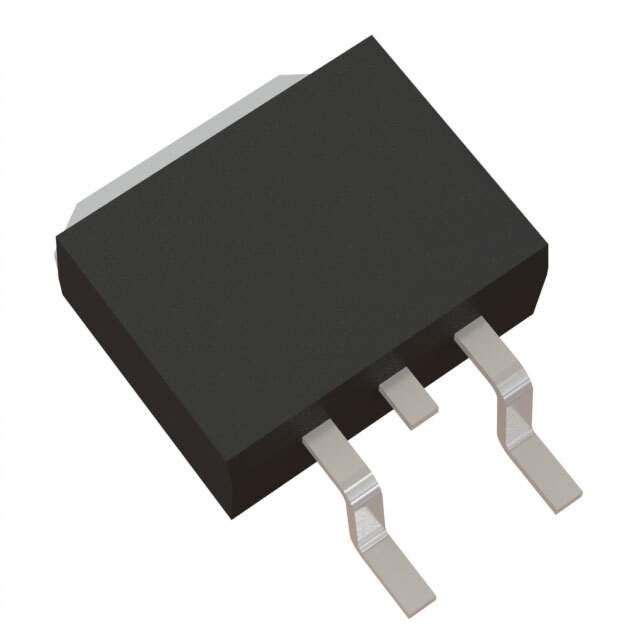

• Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
• Gate-Source Voltage (Vgs) (Max): ±20V
• Operating Temperature: -55°C to 150°C (TJ)
• Continuous Drain Current (Id): 42A (Tc)
• On-Resistance (Rds On): 84mOhm @ 500mA, 10V
• Gate Charge (Qg): 70 nC @ 10 V
• Input Capacitance (Ciss): 2300 pF @ 25 V
