The IXYS IXTA64N10L2 is an N-Channel MOSFET transistor from the Linear L2™ series of IXYS.

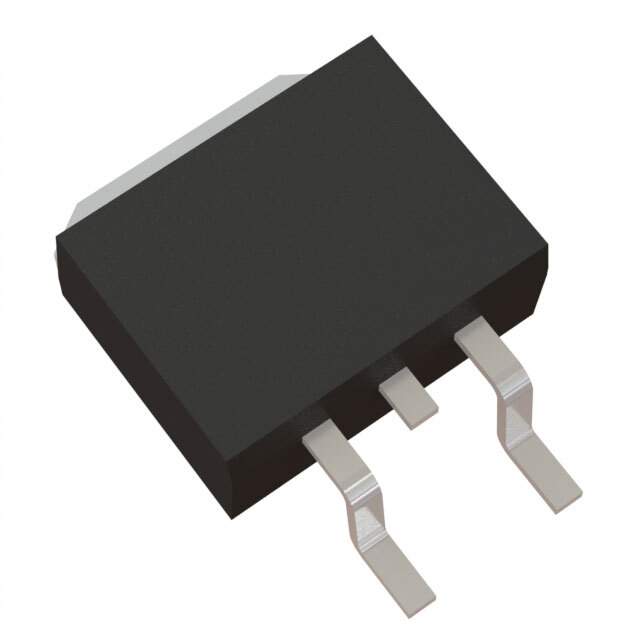

• Package: TO-263-3, D2Pak (2 Leads + Tab) , TO-263AB
• Drain to Source Voltage (Vdss): 100 V
• Maximum Power Dissipation: 357W (Tc)
• Maximum Gate-Source Voltage (Vgs): ±30V
• Temperature Range: -55°C to 150°C (TJ)
• Current-Continuous Drain (Id): 64A (Tc)
• Maximum On-Resistance (Rds On): 32mOhm @ 500mA, 10V
• Gate Charge (Qg): 100 nC @ 10 V
• Input Capacitance (Ciss): 3620 pF @ 25 V
• Ideal for use in: applications such as power supplies, motor control, and lighting.
