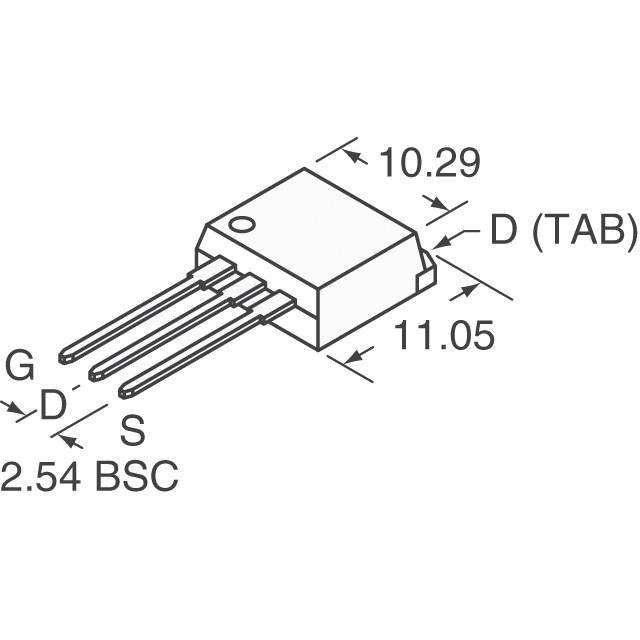

IXTI12N50P Real Image
Same model may have multiple batches, images only for reference.

IXTI12N50P

Part No IXTI12N50P
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 12A TO262 / N-Channel 500 V 12A (Tc) 200W (Tc) Through Hole TO-262 (I2PAK)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Series Polar™
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 500 V
Current - Continuous Drain (Id) @ 25°C 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 500mOhm @ 6A, 10V
Vgs(th) (Max) @ Id 5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 29 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 1830 pF @ 25 V
Power Dissipation (Max) 200W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-262 (I2PAK)
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Base Product Number IXTI12
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346687-IXTI12N50P
Ultra Librarian 3D Model Ultra Librarian IXTI12N50P CAD Model

Description

The IXTI12N50P is an N-channel MOSFET from IXYS. IXTI12N50P IXYS.

  • Discrete Semiconductor Product Use: Discrete semiconductor products
  • Drain-Source Voltage: 500V
  • Continuous Drain Current: 12A @ 25°C
  • Case/Package: TO-262-3 Long Leads, I²Pak, TO-262AA
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Maximum Power Dissipation: 200W (Tc)
  • Maximum Gate-Source Voltage: ±30V
  • Maximum Rds On: 500mOhm @ 6A and 10V
  • Gate-Source Threshold Voltage: 5.5V @ 250μA
  • Mounting: Through hole
  • Packaging: Tube
