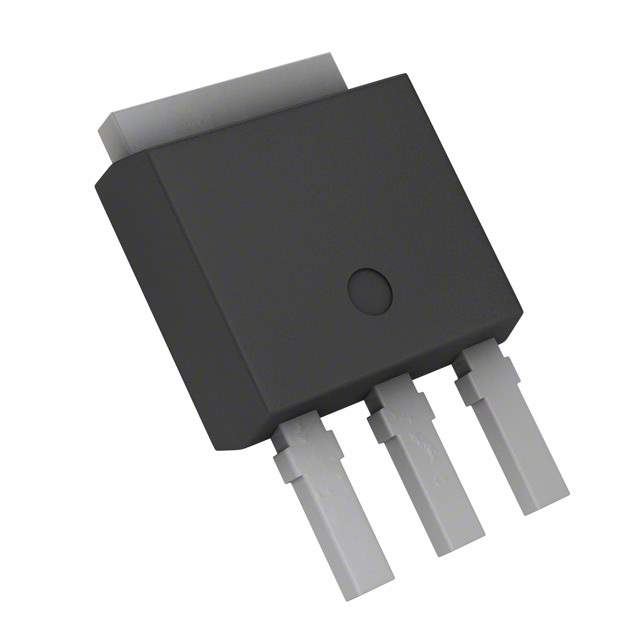

IXTU4N70X2 Real Image
Same model may have multiple batches, images only for reference.

IXTU4N70X2

Part No IXTU4N70X2
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 700V 4A TO251 / N-Channel 700 V 4A (Tc) 80W (Tc) Through Hole TO-251-3
Datasheet
IXTU4N70X2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Series Ultra X2
Package Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 700 V
Current - Continuous Drain (Id) @ 25°C 4A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 850mOhm @ 2A, 10V
Vgs(th) (Max) @ Id 4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 11.8 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 386 pF @ 25 V
Power Dissipation (Max) 80W (Tc)
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-251-3
Package / Case TO-251-3 Stub Leads, IPak
Base Product Number IXTU4
Standard Package 70
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346882-IXTU4N70X2
Ultra Librarian 3D Model Ultra Librarian IXTU4N70X2 CAD Model

Description

The IXTU4N70X2 is an N-channel MOSFET transistor from IXYS.

  • Series: Ultra X2
  • Package: TO-251-3
  • Drain to Source Voltage: 700V
  • Continuous Drain Current: 4A @ 25°C
  • Maximum Power Dissipation: 80W
  • Mounting Type: Through-Hole
  • Gate Charge: 11.8 nC @ 10V
  • Input Capacitance: 386 pF @ 25V
