Same model may have multiple batches, images only for reference.

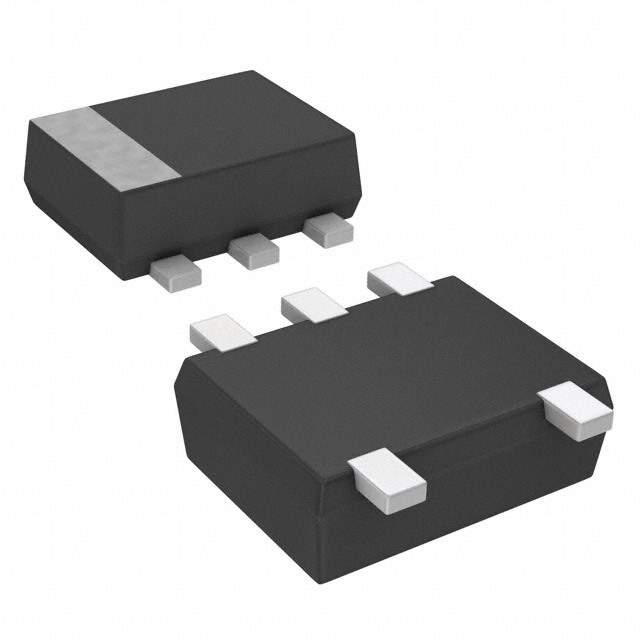

DB5S308K0R Real Image
Same model may have multiple batches, images only for reference.

DB5S308K0R

Part No DB5S308K0R
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SSMINI5
Datasheet
DB5S308K0R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 420mV @ 100mA
Reverse Recovery Time (trr) 1.3ns
Current - Reverse Leakage @ Vr 120μA @ 30V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package SSMini5-F4-B
Win Source Part Number 1032688-DB5S308K0R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB5S308K0R CAD Model

Description

The Panasonic Electronic Components 443729 is a Schottky diode that comes in a reel - TR packaging and has an SMD (SMT) mounting.

  • Packaging: Reel - TR
  • Mounting Type: SMD (SMT)
  • DC Reverse Voltage (Max): 30V
  • Forward Voltage: 420mV @ 100mA
  • Diode Configuration: 2 Independent
  • Reverse Recovery Time: 1.3ns
  • Average Rectified Current (Io) per Diode: 100mA
  • Operating Temperature (Max): 125°C
  • Category: Discrete Semiconductor Products
  • Status: Active
  • Reverse Leakage Current: 120μA @ 30V
  • Case/Package: SSMini5-F4-B
  • Popularity: Moderate
