Same model may have multiple batches, images only for reference.

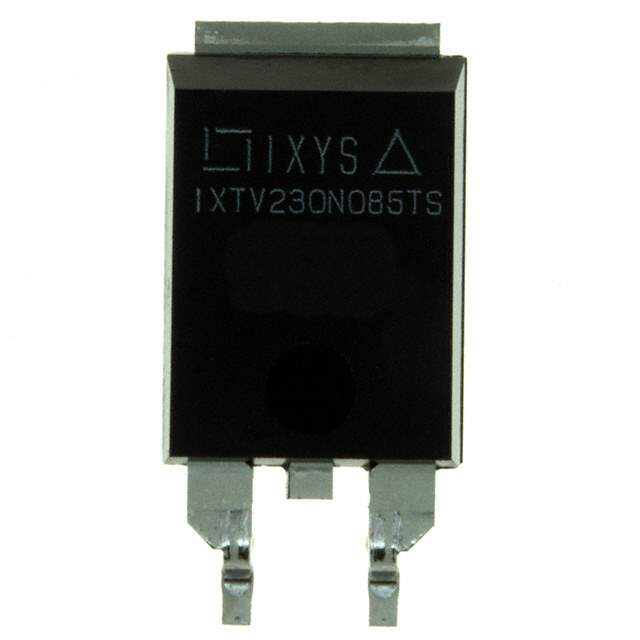

IXTV230N085TS Real Image
Same model may have multiple batches, images only for reference.

IXTV230N085TS

Part No IXTV230N085TS
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 85V 230A PLUS-220SMD / N-Channel 85 V 230A (Tc) 550W (Tc) Surface Mount PLUS-220SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Series TrenchMV™
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 85 V
Current - Continuous Drain (Id) @ 25°C 230A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 4.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 187 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9900 pF @ 25 V
Power Dissipation (Max) 550W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PLUS-220SMD
Package / Case PLUS-220SMD
Base Product Number IXTV230
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346676-IXTV230N085TS
Ultra Librarian 3D Model Ultra Librarian IXTV230N085TS CAD Model

Description

The IXTV230N085TS is an N-channel MOSFET transistor from the TrenchMV series.

  • Drain-Source Voltage: 85V
  • Continuous Drain Current: 230A @ 25°C
  • Package: PLUS-220SMD
  • Mounting Type: Surface Mounted
  • Power Dissipation: 550W (Tc)
  • Drive Voltage: 10V
  • On-State Resistance: 4.4mOhm @ 50A and 10V
  • Vgs(th): 4V @ 250μA
