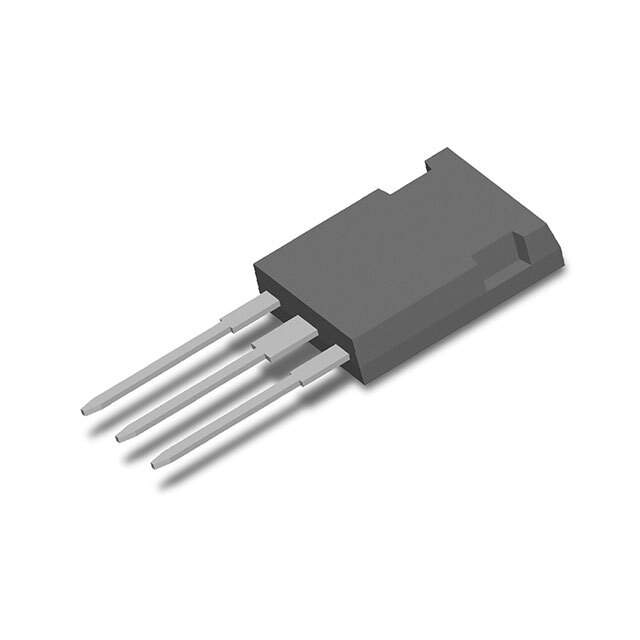

IXYX140N120A4 Real Image
Same model may have multiple batches, images only for reference.

IXYX140N120A4

Part No IXYX140N120A4
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 140A 1200V PLUS247 / IGBT PT 1200 V 480 A 1500 W Through Hole PLUS247™-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr IXYS
Series XPT™, GenX4™
Package Tube
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 480 A
Current - Collector Pulsed (Icm) 1200 A
Vce(on) (Max) @ Vge, Ic 1.7V @ 15V, 140A
Power - Max 1500 W
Switching Energy 4.9mJ (on) , 12mJ (off)
Input Type Standard
Gate Charge 420 nC
Td (on/off) @ 25°C 52ns/590ns
Test Condition 600V, 70A, 1.5Ohm, 15V
Reverse Recovery Time (trr) 47 ns
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3 Variant
Supplier Device Package PLUS247™-3
Base Product Number IXYX140
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1339948-IXYX140N120A4
Ultra Librarian 3D Model Ultra Librarian IXYX140N120A4 CAD Model

Description

The IXYS 1339948-IXYX140N120A4 is a single IGBT transistor.

  • Voltage Collector Emitter Breakdown: 1200V
  • Continuous Collector Current: 480A
  • Vce(on): 1.7V @ Vge, Ic of 15V, 140A
  • Power Dissipation: 1500W
  • Reverse Recovery Time: 47ns
  • Mounting Type: Through-Hole
  • Package: TO-247-3 Variant
  • Gate Charge: 420 nC
  • Switching Energy: 4.9mJ (on), 12mJ (off)
  • Operating Temperature: -55°C to 175°C (TJ)
  • Series: XPT™, GenX4™
