Same model may have multiple batches, images only for reference.

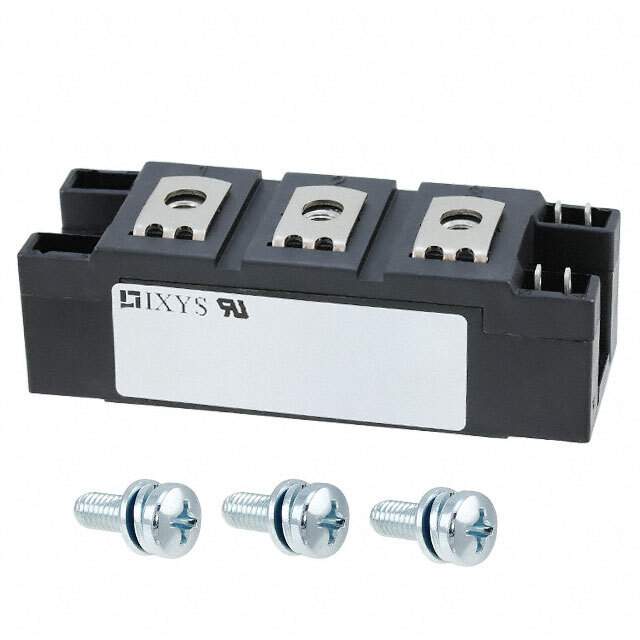

MCC162-16IO1 Real Image
Same model may have multiple batches, images only for reference.

MCC162-16IO1

Part No MCC162-16IO1
Manufacturer IXYS
Catalog SCRs - Single - Modules
Description THYRISTOR MODULE 1600V 2X190A
Datasheet
MCC162-16IO1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Status Active
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1600V
Current - On State (It (AV)) (Max) 190A
Current - On State (It (RMS)) (Max) 300A
Voltage - Gate Trigger (Vgt) (Max) 2.5V
Current - Gate Trigger (Igt) (Max) 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 6000A, 6400A
Current - Hold (Ih) (Max) 200mA
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Chassis Mount
Dimension Y4-M6
Win Source Part Number 208135-MCC162-16IO1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MCC162-16IO1 CAD Model

Description

The MCC162-16IO1 is a Chassis Mount SCR from IXYS.

  • Voltage: 1600V maximum
  • Current: 190A maximum
  • Current Hold: 200mA
  • Gate Trigger Voltage: 2.5V
  • Configuration: Series connection of two SCRs
  • Category: Discrete Semiconductor Products
  • Non-Repetitive Surge Current: 6000A @ 50Hz and 6400A @ 60Hz
  • Operating Temperature: -40°C to 125°C (TJ)
  • Package: Y4-M6
  • Demand: Medium
