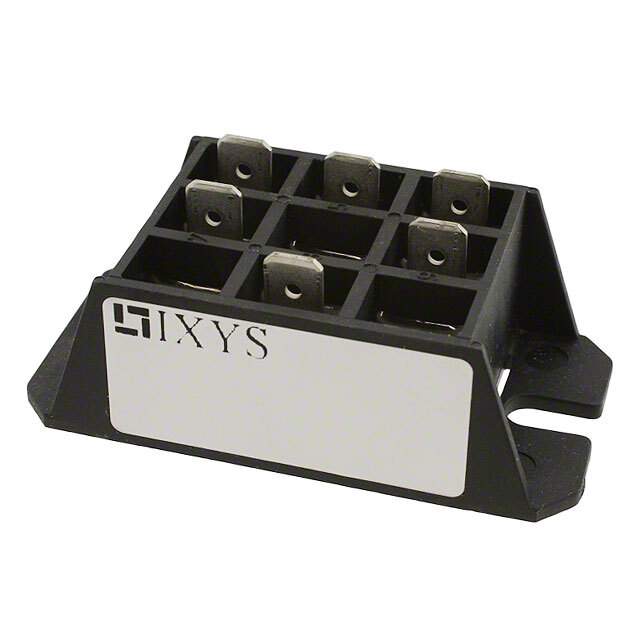

VHF15-14IO5 Real Image
Same model may have multiple batches, images only for reference.

VHF15-14IO5

Part No VHF15-14IO5
Manufacturer IXYS
Catalog TVS - Thyristors
Description BRIDGE RECTIF SGLE PHASE W/DIODE / SCR Module 1.4 kV 15 A Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount PWS-E1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Package Bulk
Product Status Obsolete
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 1.4 kV
Current - On State (It (RMS) ) (Max) 15 A
Voltage - Gate Trigger (Vgt) (Max) 1 V
Current - Gate Trigger (Igt) (Max) 65 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 190A, 210A
Current - Hold (Ih) (Max) 100 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case PWS-E1
Base Product Number VHF15
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 1341493-VHF15-14IO5
Ultra Librarian 3D Model Ultra Librarian VHF15-14IO5 CAD Model

Description

The VHF15-14IO5 is a single-phase bridge rectifier module with two SCRs and two diodes.

  • Type: Single-phase bridge rectifier
  • Components: Two SCRs and two diodes
  • Voltage Off State: 1.4 kV
  • Non-Repetitive Surge Current: Up to 190A or 210A
  • Mounting: Chassis mountable
  • Package: PWS-E1
  • Operating Temperature: -40°C to 125°C
  • Product Status: Obsolete
  • Manufacturer: IXYS
