Same model may have multiple batches, images only for reference.

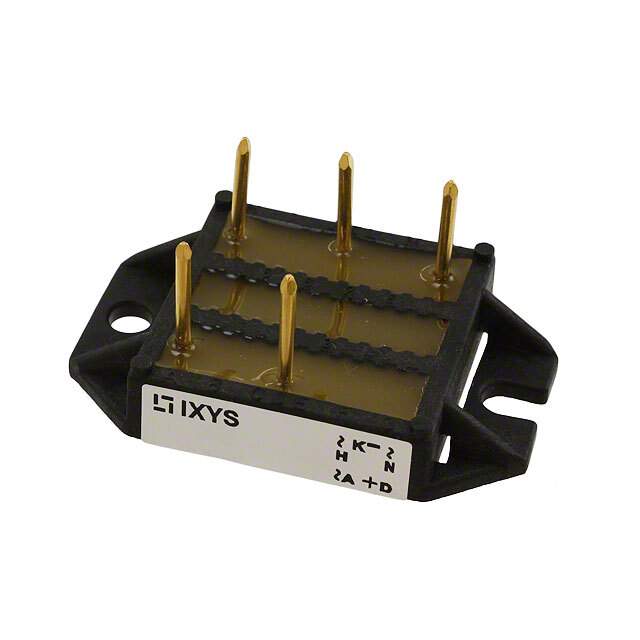

VUO86-16NO7 Real Image
Same model may have multiple batches, images only for reference.

VUO86-16NO7

Part No VUO86-16NO7
Manufacturer IXYS
Catalog Bridge Rectifiers
Description Three Phase Rectifier Bridge | BRIDGE RECT 3P 1.6KV 86A ECOPAC1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1.6kV
Current - Average Rectified (Io) 86A
Voltage - Forward (Vf) (Maximum) at If 1.14V at 30A
Current - Reverse Leakage at Vr 40μA at 1600V
Temperature Range - Operating -40°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package ECO-PAC1
Supplier Device Package ECO-PAC1
Family Part Number VUO86
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1279945-VUO86-16NO7
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VUO86-16NO7 CAD Model

Description

The 1279945-VUO86-16NO7 is a three-phase standard diode which has a current average rectified (Io) of 86A.

  • Package: ECO-PAC1 package
  • Mounting: Through chassis
  • Voltage Peak Reverse (maximum): 1.6kV
  • Voltage Forward (Vf) (maximum) @ If: 1.14V @ 30A
  • Current Reverse Leakage @ Vr: 40 µA @ 1600V
  • Manufacturer: IXYS
  • Popularity: Medium
