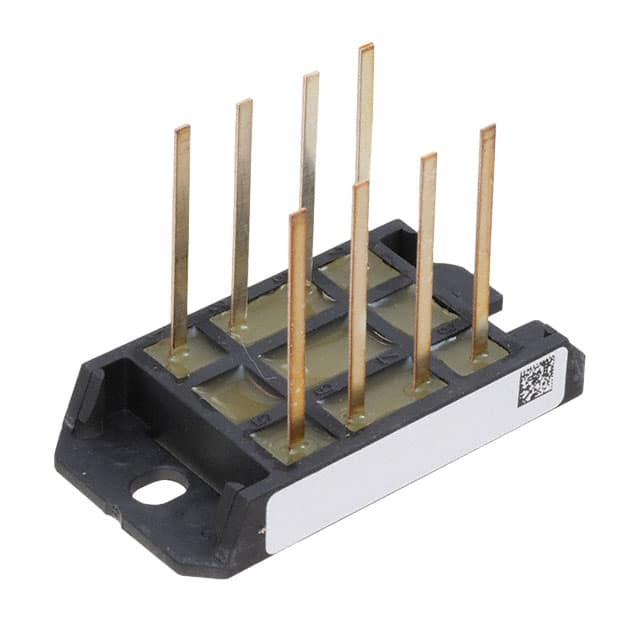

VVZ40-16IO1
Same model may have multiple batches, images only for reference.

VVZ40-16IO1

Part No VVZ40-16IO1
Manufacturer IXYS
Catalog TVS - Thyristors
Description RECT BRIDGE 3PH 34A 1600V KAMM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Package Box
Product Status Active
Structure Bridge, 3-Phase - SCRs/Diodes
Number of SCRs, Diodes 3 SCRs, 3 Diodes
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 34 A
Voltage - Gate Trigger (Vgt) (Max) 1 V
Current - Gate Trigger (Igt) (Max) 65 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 320A, 340A
Current - Hold (Ih) (Max) 100 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case KAMM
Base Product Number VVZ40
Standard Package 5 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 846940-VVZ40-16IO1
Ultra Librarian 3D Model Ultra Librarian VVZ40-16IO1 CAD Model

Description

The VVZ40-16IO1 is a module designed for thyristor applications and manufactured by IXYS.

  • Type: 3-Phase Bridge (3 SCRs, 3 Diodes)
  • Voltage Rating: 1.6kV
  • Maximum Gate Trigger Voltage: 1V
  • Maximum On-State Current: 34A
  • Non-Repetitive Surge Current (50Hz): 320A
  • Non-Repetitive Surge Current (60Hz): 340A
  • Mounting Type: Chassis Mount
  • Package: KAMM
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • Standard Package: 5 pieces
