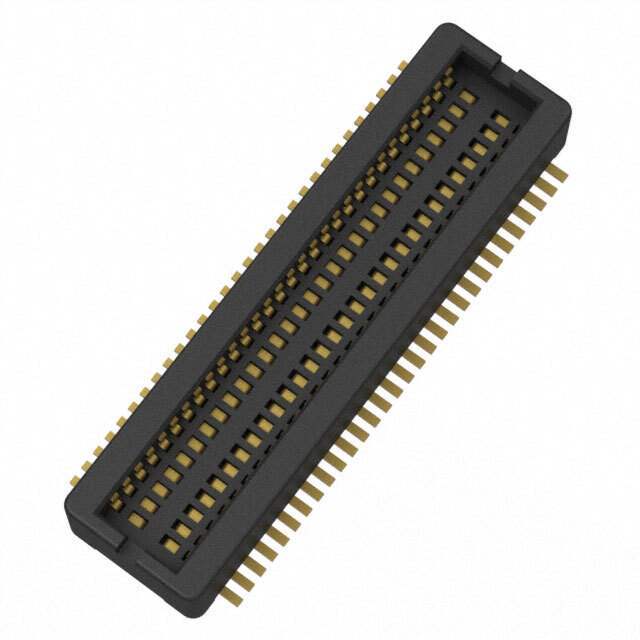

AC01S080WA1R3000JAE Electronics
Same model may have multiple batches, images only for reference.

AC01S080WA1R3000

Part No AC01S080WA1R3000
Manufacturer JAE Electronics
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 80POS SMD GOLD
Datasheet
AC01S080WA1R3000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JAE Electronics
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Part Status Active
Connector Type Receptacle, Outer Shroud Contacts
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Height Above Board 0.089" (2.26mm)
Mated Stacking Heights 2.5mm
Win Source Part Number WS1309320-AC01S080WA1R3000
Ultra Librarian 3D Model Ultra Librarian AC01S080WA1R3000 CAD Model

Description

The AC01 series is a 0.5mm pitch horizontal board to board connector, suitable for information and communication equipment, and various other industrial equipment. The connector series are available in 2.5mm and 3.0mm stacking heights, as well as utilizing a highly stable and reliable contact structure which has been proven over decades of use.
