DB-25PF-N JAE Electronics
Same model may have multiple batches, images only for reference.

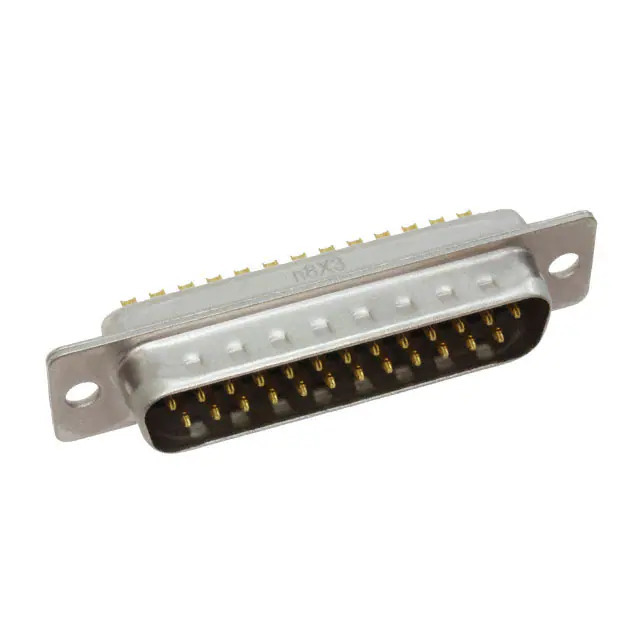

DB-25PF-N

Part No DB-25PF-N
Manufacturer JAE Electronics
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 25POS SLDR CUP / 25 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr JAE Electronics
Series -
Package -
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness -
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Backset Spacing -
Features Grounding Indents, Shielded
Voltage Rating -
Color Black
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge 20 AWG
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number DB-25PF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1365171-DB-25PF-N
Ultra Librarian 3D Model Ultra Librarian DB-25PF-N CAD Model

Description

The DB-25PF-N is a D-sub connector assembly manufactured by JAE Electronics.

  • Shielded: Yes
  • Number of Positions: 25
  • Number of Rows: 2
  • Mounting Type: Free Hanging (In-Line)
  • Current Rating: 5A
  • Wire Gauge: 20 AWG
  • Contact Finish: Gold
  • Application: Industrial Equipment, Telecommunications, and Computer Systems
  • California Prop 65 Warning Required: Yes
