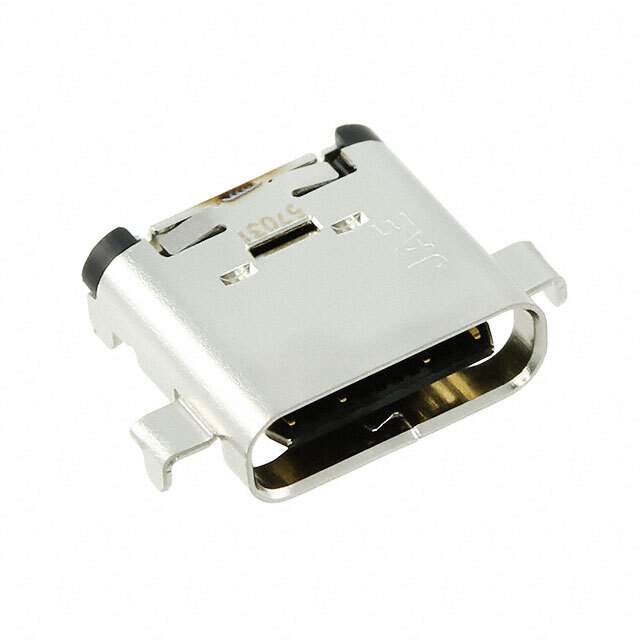

DX07B024JJ1R1500

Name: DX07B024JJ1R1500
Brand: JAE Electronics
SKU: 1285035
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DX07B024JJ1R1500
Manufacturer	JAE Electronics
Catalog	USB, DVI, HDMI Connectors
Datasheet	DX07B024JJ1R1500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr	JAE Electronics
Series	DX07
Package	Tape & Reel
Connector Type	USB-C (USB TYPE-C)
Number of Contacts	24
Gender	Receptacle
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type	Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Mounting Feature	Horizontal, Mid Mount
Termination	Solder
Features	Pick and Place
Temperature Range - Operating	-30°C ~ 80°C
Number of Ports	1
Current Rating (Amps)	0.25A, 1.25A
Voltage - Rated	20V
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Insulation Color	Black
Base Product Number	DX07B024
Other Names	670-2795-2,670-2795-1,670-2795-6
Standard Package	1,500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285035-DX07B024JJ1R1500
Ultra Librarian 3D Model	Ultra Librarian DX07B024JJ1R1500 CAD Model

Alternative Products

Description

The JAE Electronics DX07B024 is a high-quality electronic component that is designed for use in connectors and interconnects.

Series: DX07
Features: Pick and Place
Connector Type: USB-C (USB TYPE-C)
Mounting: Soldered
Contact Finish: Gold
Shielded: Yes
Contacts: 24
Specification: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Temperature Range: -30°C to 80°C
Current Rating (Amps): 0.25A and 1.25A
Standard Package: 1,500
HTSUS: 8536.69.4040
