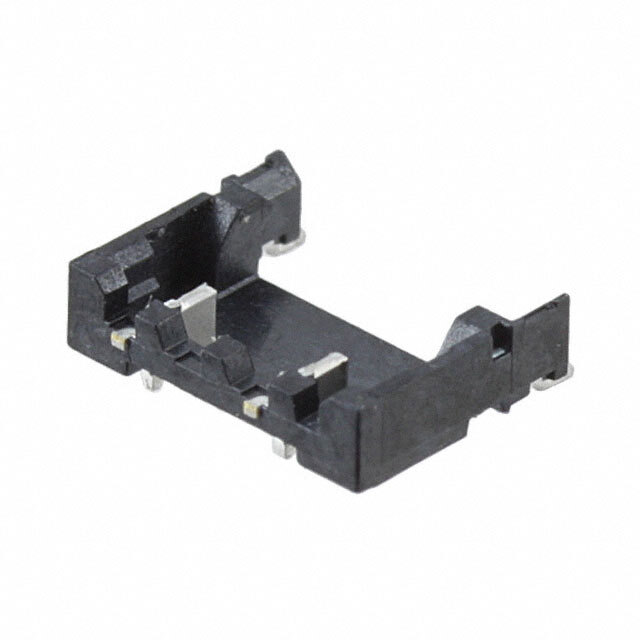

Same model may have multiple batches, images only for reference.
ES3B002WF2R1000 JAE Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ES3B002WF2R1000

Part No ES3B002WF2R1000
Manufacturer JAE Electronics
Catalog Solid State Lighting Connector - Assemblies
Description CONN SSL RCPT 2POS 3MM SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Style Board to Board - Card Edge
Connector Type Receptacle
Number of Positions 2
Mounting Type Surface Mount, Bottom Entry, Through Board
Termination Solder
Pitch 0.118" (3.00mm)
Housing Color White
Contact Material Copper Alloy
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1569984-ES3B002WF2R1000
Ultra Librarian 3D Model Ultra Librarian ES3B002WF2R1000 CAD Model

Description
