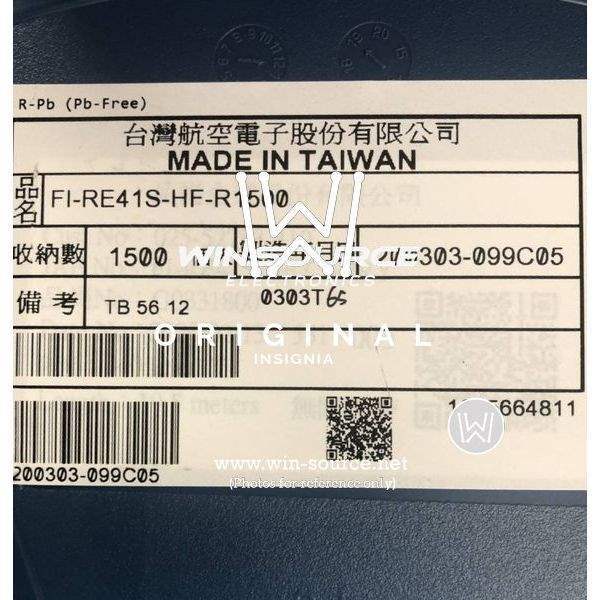

The FI-RE41S-HF is a connector manufactured by JAE Electronics, part of their FI-RE series. This connector is commonly used for connecting LCD panels to driver boards, especially in applications requiring high-speed data transmission and compact size.

Applications

• LCD Panel connections in Televisions
• Laptop and Notebook Displays
• Tablets and Mobile Devices
• Industrial Displays and Monitors
• Digital Signage

Features

• 41-Pin Configuration: Designed for specific LCD panel interfaces.
• Small Form Factor: Allows for high-density mounting in compact devices.
• High-Speed Data Transmission: Supports LVDS (Low-Voltage Differential Signaling) for fast and reliable data transfer.
• Secure Locking Mechanism: Ensures a stable connection, preventing accidental disconnections.
• RoHS Compliant: Meets environmental regulations for hazardous substances.

Benefits

• Reliable Connection: Ensures consistent display performance.
• Compact Design: Enables smaller and lighter devices.
• High-Speed Data Transfer: Supports high-resolution displays and fast refresh rates.
• Easy Installation: Simplifies assembly and maintenance.
• Compliance with Standards: Meets industry and environmental regulations.

Additional Details

The FI-RE41S-HF connector is typically used with a corresponding receptacle connector on the LCD panel side. The 'HF' suffix likely indicates a halogen-free material composition, complying with environmental regulations.

Number of Contacts: 41

Connector Type: Receptacle

Mounting Type: Surface Mount

Mating Style: Cable
