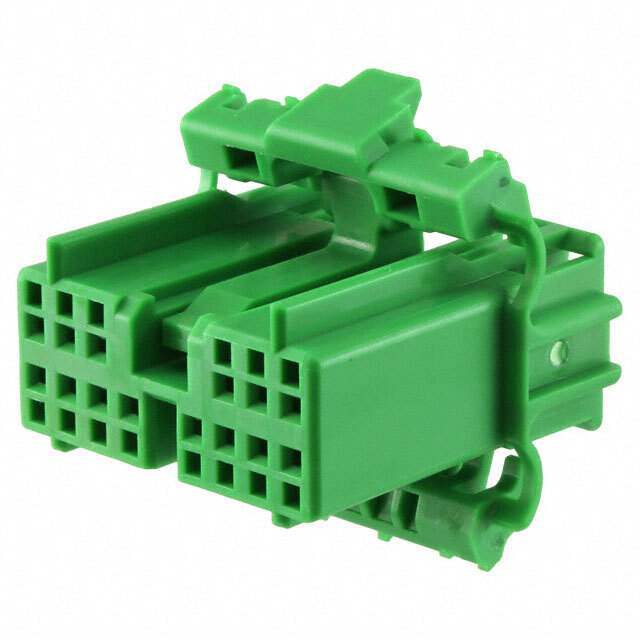

Same model may have multiple batches, images only for reference.
IL-AG5-14S-D3C1-AJAE Electronics
Same model may have multiple batches, images only for reference.

IL-AG5-14S-D3C1-A

Part No IL-AG5-14S-D3C1-A
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT HSG 14POS 2.50MM
Datasheet
IL-AG5-14S-D3C1-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204079-IL-AG5-14S-D3C1-A
Manufacturer JAE Electronics
Category Connectors, Interconnects -Rectangular Connectors- Rectangular Connector Housings
Series IL-AG5
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 14
Insulation Material Polybutylene Terephthalate (PBT)
Operating Temperature -40°C ~ 85°C
Ultra Librarian 3D Model Ultra Librarian IL-AG5-14S-D3C1-A CAD Model

Description

FEATURES<br />●Designed for automotive instrument panel applications<br />●Mechanical lock assures positive mating<br />●Unique housing configuration helps prevent mismating<br />●Double locking mechanism prevents dislodging<br />of contacts
