IL-AG5-5P-S3C1 JAE Electronics
Same model may have multiple batches, images only for reference.

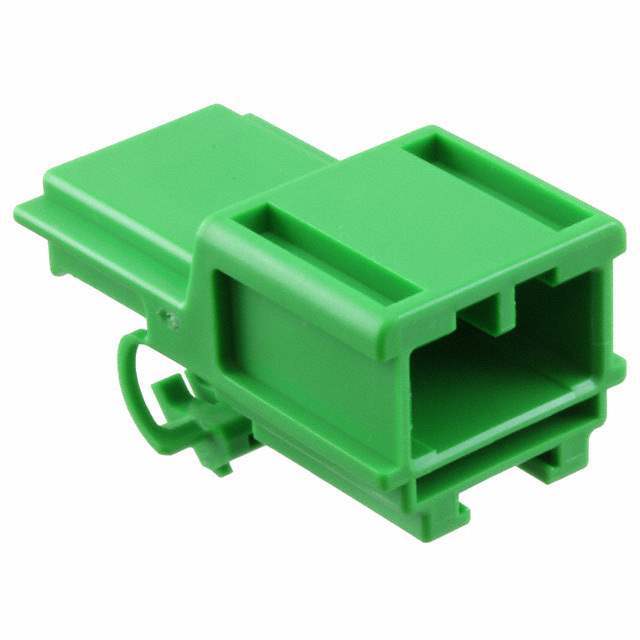

IL-AG5-5P-S3C1

Part No IL-AG5-5P-S3C1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG HSG 5POS 2.50MM
Datasheet
IL-AG5-5P-S3C1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204076-IL-AG5-5P-S3C1
Manufacturer JAE Electronics
Category Connectors, Interconnects- Rectangular Connectors- Rectangular Connector Housings
Series IL-AG5
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Male Pin
Insulation Material Polybutylene Terephthalate (PBT)
Operating Temperature -40°C ~ 85°C
Base Product Number IL-AG5-5
Ultra Librarian 3D Model Ultra Librarian IL-AG5-5P-S3C1 CAD Model

Description

FEATURES<br />●Designed for automotive instrument panel applications<br />●Mechanical lock assures positive mating<br />●Unique housing configuration helps prevent mismating<br />●Double locking mechanism prevents dislodging<br />of contacts
