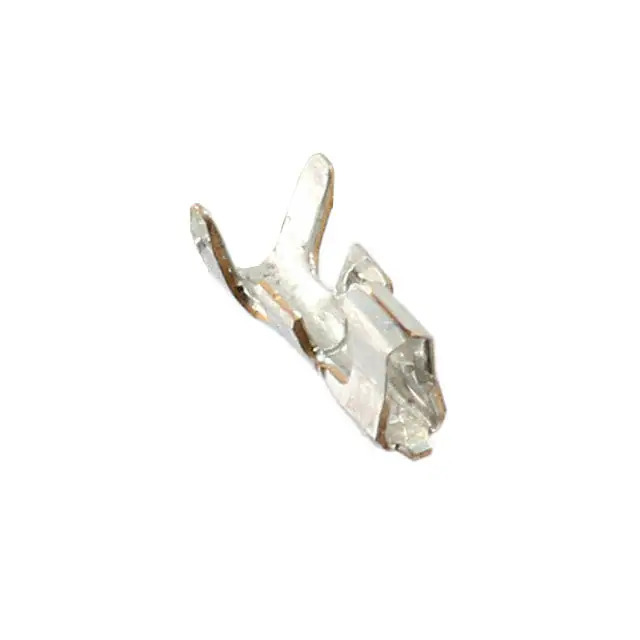

IL-Z-C3-A-15000 JAE Electronics
Same model may have multiple batches, images only for reference.

IL-Z-C3-A-15000

Part No IL-Z-C3-A-15000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN SOCKET 28-32AWG CRIMP TIN / Socket Contact Tin 28-32 AWG Crimp
Datasheet
IL-Z-C3-A-15000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr JAE Electronics
Series IL-Z
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 28-32 AWG
Contact Finish Tin
Contact Finish Thickness -
Base Product Number IL-Z-C3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362824-IL-Z-C3-A-15000
Ultra Librarian 3D Model Ultra Librarian IL-Z-C3-A-15000 CAD Model

Description

The IL-Z-C3-A-15000 is a rectangular connector contact manufactured by JAE Electronics.

  • Contact Type: Socket
  • Termination: Crimp
  • Wire Gauge: 28 to 32 AWG
  • Contact Finish: Tin
  • Series: IL-Z
