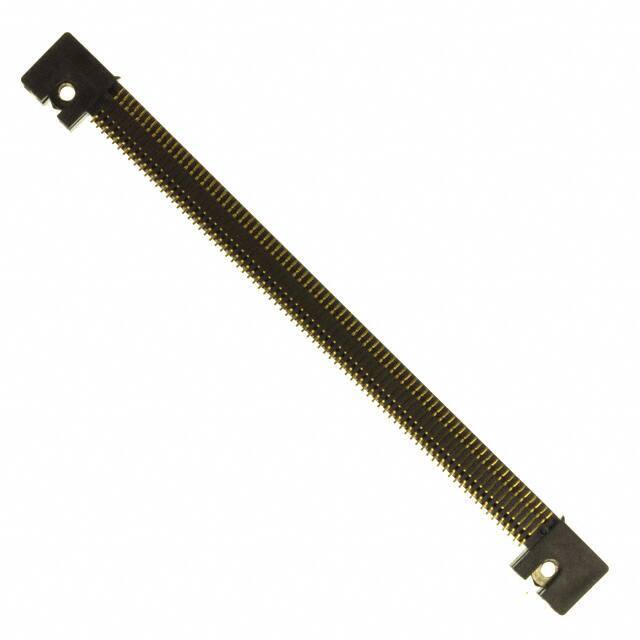

KX15-160NLNL
Same model may have multiple batches, images only for reference.

KX15-160NLNL

Part No KX15-160NLNL
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 160POS R/A SMD GOLD
Datasheet
KX15-160NLNL Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series KX15
Package Tray
Product Status Obsolete
Connector Type Plug, Center Strip Contacts
Number of Positions 160
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount, Right Angle
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.226" (5.74mm)
Base Product Number KX15-160
Standard Package 57 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 922572-KX15-160NLNL
Ultra Librarian 3D Model Ultra Librarian KX15-160NLNL CAD Model

Description

The KX15 series offers arrays of edge-type mezzanine connectors that are perfect for board-to-board connections.

  • Product Name: KX15-160NLNL connector
  • Positions: 160
  • Pitch: 0.031" (0.80mm)
  • Type: Plug Connector
  • Contacts: Center Strip Contacts
  • Contact Finish: Gold
  • Height Above Board: 0.226" (5.74mm)
  • Mounting: Surface Mount and Right Angle Mounting
  • Package: Tray
  • Pieces per Package: 57
  • Status: Obsolete
  • Manufacturer: JAE Electronics
