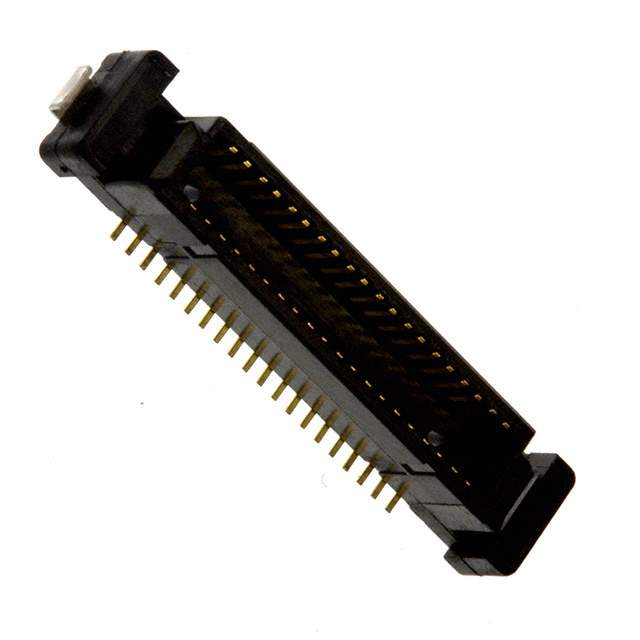

KX15-40K3DE Real Image
Same model may have multiple batches, images only for reference.

KX15-40K3DE

Part No KX15-40K3DE
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 40POS SMD GOLD  /  40 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Datasheet
KX15-40K3DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series KX15
Package Tray
Connector Type Plug, Center Strip Contacts
Number of Positions 40
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 5mm, 8mm, 11mm, 14mm, 17mm
Height Above Board 0.187" (4.75mm)
Base Product Number KX15-40K
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names KX1540K3DE,670-1315
Standard Package 1
Win Source Part Number 1210043-KX15-40K3DE
Ultra Librarian 3D Model Ultra Librarian KX15-40K3DE CAD Model

Description

The KX15-40K3DE is a rectangular connector array from JAE Electronics.

  • Positions: 40
  • Pitch: 0.031 inches (0.80mm)
  • Connector Type: Plug and center strip contacts
  • Rows: Two
  • Height Above Board: 0.187 inches (4.75mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Features: Board guide and solder retention
  • Mounting: SMD (SMT)
  • Mated Stacking Height: 5mm, 8mm, 11mm, 14mm, 17mm
  • Ideal for: use in board-to-board applications and is perfect for industrial and consumer electronics, portable devices, and power management applications
