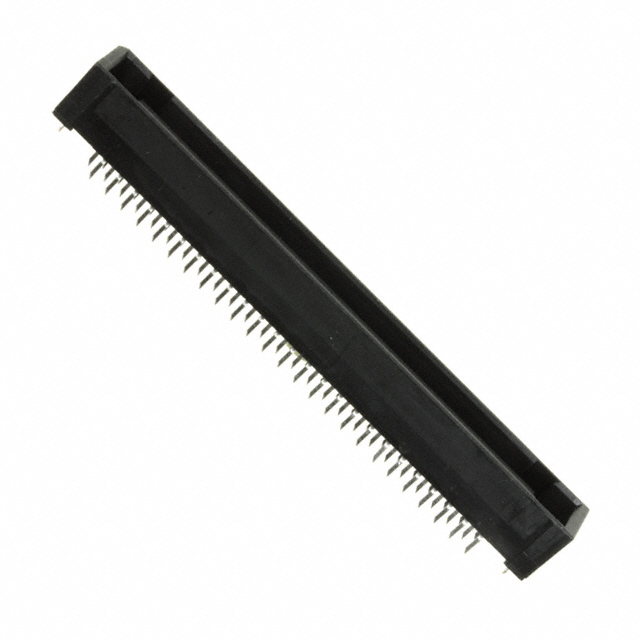

TX25-100P-6ST-H1E

Part No TX25-100P-6ST-H1E
Manufacturer JAE Electronics
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN PLUG 100POS VERT GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsRectangular ConnectorsArrays, Edge Type, Mezzanine (Board to Board)
Manufacturer JAE Electronics
Series TX25
Packaging Tray
Part Status Active
Connector Type Plug, Center Strip Contacts
Number of Positions 100
Pitch 0.050" (1.27mm)
Number of Rows 2
Mounting Type Through Hole
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 4.00μin (0.100μm)
Mated Stacking Heights 12mm, 16mm, 18mm
Height Above Board 0.362" (9.20mm)
Base Product Number TX25-100
Ultra Librarian 3D Model Ultra Librarian TX25-100P-6ST-H1E CAD Model
