Same model may have multiple batches, images only for reference.

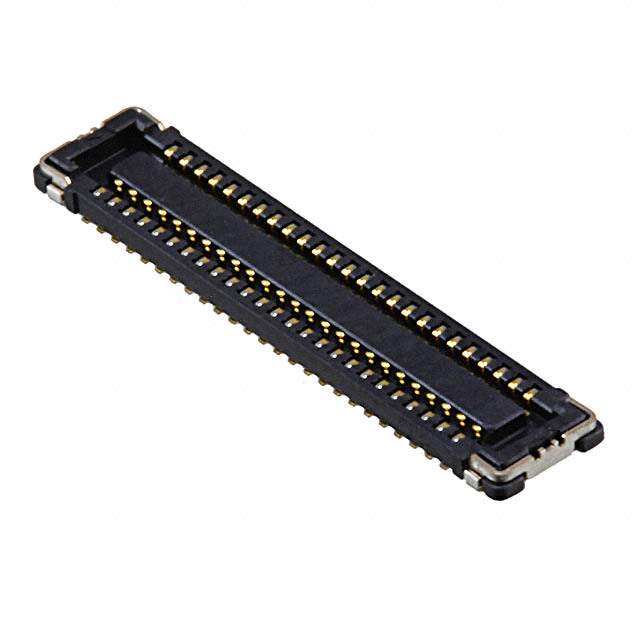

WP7B-S050VA1-R6000 Real Image
Same model may have multiple batches, images only for reference.

WP7B-S050VA1-R6000

Part No WP7B-S050VA1-R6000
Manufacturer JAE Electronics
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 0.4MM 50POS DUAL SMD
Datasheet
WP7B-S050VA1-R6000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 3.9μin (0.10μm)
Mated Stacking Heights 0.7mm
Height Above Board 0.028" (0.71mm)
Win Source Part Number 214003-WP7B-S050VA1-R6000
Popularity Medium
Supply and Demand Status Balance
Quantity per package 6k pcs
Ultra Librarian 3D Model Ultra Librarian WP7B-S050VA1-R6000 CAD Model

Description

The 214003-WP7B-S050VA1-R6000 is a 50 position connector receptacle with center strip contacts designed for surface mount applications.

  • Positions: 50
  • Type: Connector Receptacle
  • Contacts: Center strip
  • Mounting: Surface Mount
  • Manufacturer: JAE Electronics
  • Family: WP7B-S05
  • Contact Surface: Gold
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention
  • Package: Reel
  • Quantity per Package: 6,000
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand: Balance
