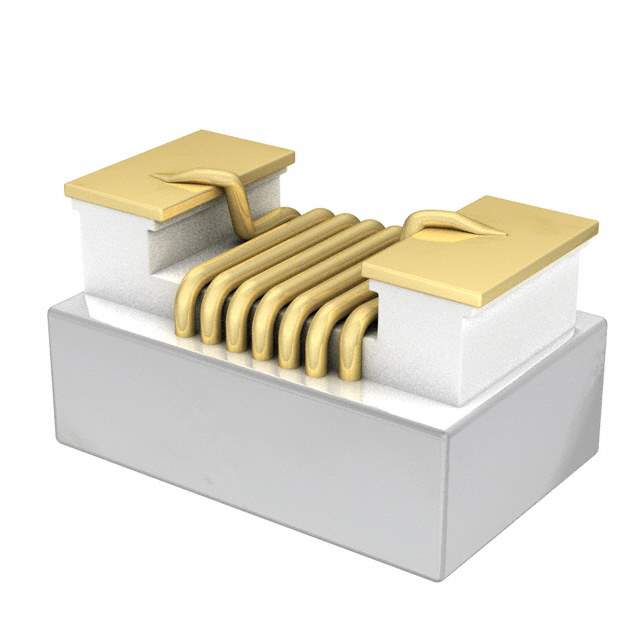

Same model may have multiple batches, images only for reference.

L-07W6N8JV4T

Name: L-07W6N8JV4T
Brand: Johanson Technology Inc.
SKU: 1327365
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	L-07W6N8JV4T
Manufacturer	Johanson Technology Inc.
Catalog	Fixed Inductors
Description	FIXED IND 6.8NH 680MA 83MOHM SMD / 6.8 nH Unshielded Drum Core, Wirewound Inductor 680 mA 83mOhm Max 0402 (1005 Metric)
Datasheet	L-07W6N8JV4T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Johanson Technology Inc.
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	6.8 nH
Tolerance	±5%
Current Rating (Amps)	680 mA
Shielding	Unshielded
DC Resistance (DCR)	83mOhm Max
Q @ Freq	58 @ 900MHz
Frequency - Self Resonant	4.8GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	Surface Mount
Case / Package	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.024" (0.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	712-1617-2,712-1617-1,712-1617-6,L-07W6N8JV4T-ND
Standard Package	10,000
Win Source Part Number	1327365-L-07W6N8JV4T
Ultra Librarian 3D Model	Ultra Librarian L-07W6N8JV4T CAD Model

Alternative Products

Description

The Johanson Technology Inc. L-07W6N8JV4T is a drum core, wirewound inductor.

Shielding: Unshielded
Tolerance: ±5%
Package: Reel-TR
Size/Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Inductance: 6.8nH
Maximum Height: 0.024" (0.60mm)
Standard Package: 10,000
Mounting: Surface Mount
Material-Core: Ceramic
Q @ Freq: 58 @ 900MHz
Frequency-Self Resonant: 4.8GHz
DC Resistance (DCR): 83mOhm Max
Supplier Device Package: 0402 (1005 Metric)
Temperature Range: -40°C ~ 125°C
Dimension: 0.200" L x 0.125" W (5.08mm x 3.18mm)
Inductance Frequency-Test: 250 MHz
REACH Status: REACH Unaffected
RoHS Status: ROHS3 Compliant
