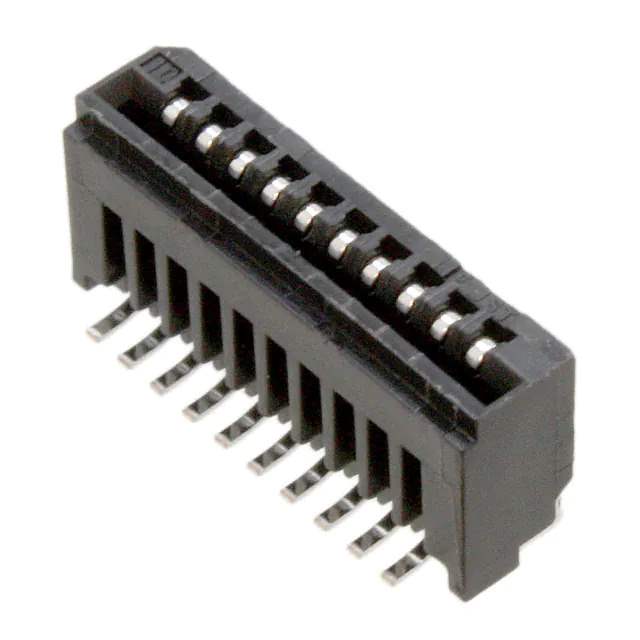

10FMN-BMT-A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

10FMN-BMT-A-TF(LF)(SN)

Part No 10FMN-BMT-A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 10POS 1MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr JST Sales America Inc.
Series FMN
Package Tape & Reel
Product Status Active
Flat Flex Type FFC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 10
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.201" (5.10mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Base Product Number 10FMN-BM
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 853707-10FMN-BMT-A-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 10FMN-BMT-A-TF(LF)(SN) CAD Model

Description

The 853707-10FMN-BMT-A-TF(LF)(SN) is a flat flexible connector assembly from the FMN series manufactured by an unspecified manufacturer.

  • Positions: 10
  • Pitch: 0.039" (1.00mm)
  • Features: Low Insertion Force (LIF)
  • Termination: Solder
  • Contact Finish: Tin
  • Mounting: Surface Mount
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.201" (5.10mm)
  • Flat Flex Type: FFC
  • Package: Tape & Reel
  • Flammability Rating: UL94 V-0
  • Product Status: Active
  • Standard Package: 1,000 pcs
