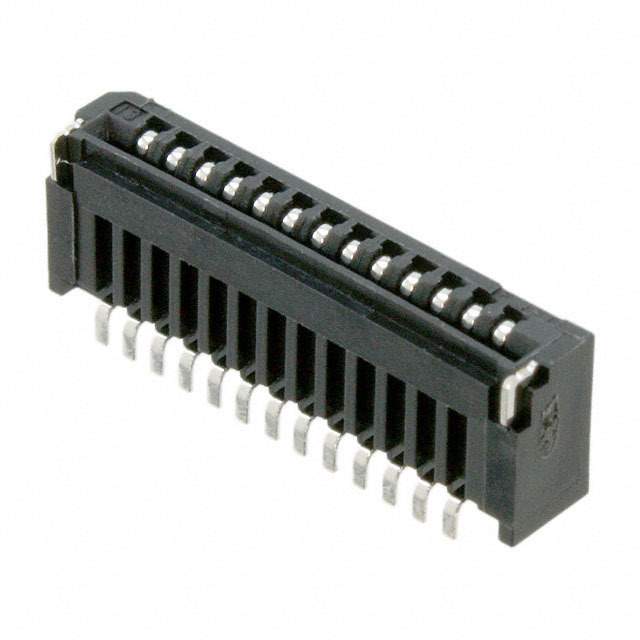

Same model may have multiple batches, images only for reference.

13FMN-SMT-A-TF(LF)(SN)

Name: 13FMN-SMT-A-TF(LF)(SN)
Brand: JST Sales America Inc.
SKU: 415732
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	13FMN-SMT-A-TF(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC TOP 13POS 1.00MM R/A
Datasheet	13FMN-SMT-A-TF(LF)(SN) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Reel - TR
Status	Active
Flat Flex Type	FFC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	13
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.118" (3.00mm)
Cable End Type	Straight
Contact Finish	Tin
Housing Material	Polyamide (PA6T), Nylon 6T
Features	Low Insertion Force (LIF)
Voltage Rating	50V
Temperature Range - Operating	-25°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Housing Color	Black
Win Source Part Number	1001445-13FMN-SMT-A-TF(LF)(SN)
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 13FMN-SMT-A-TF(LF)(SN) CAD Model

Alternative Products

Description

The 13FMN-SMT-A-TF(LF)(SN) is a connector/interconnect manufactured by JST Sales America Inc.

Positions: 13
Pitch: 0.039" (1.00mm)
Feature: low insertion force (LIF)
Voltage Rating: 50V
Current Rating: 0.5A
Product Status: active
Temperature Range: -25°C to 85°C
