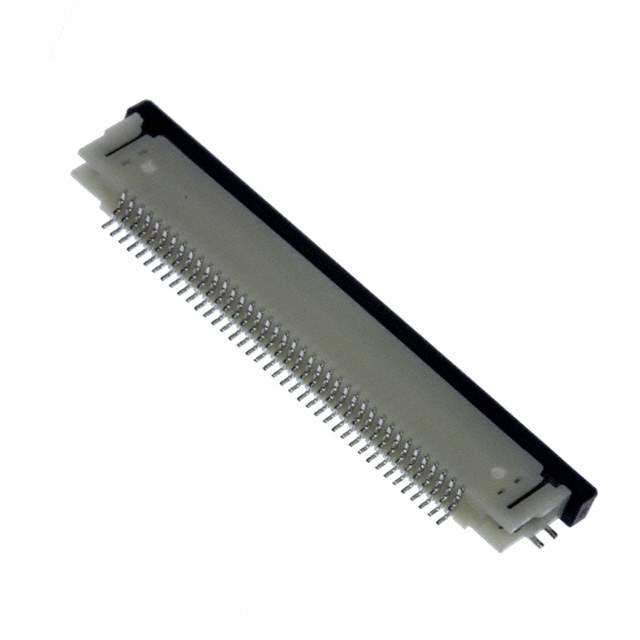

40FLZ-RSM2-R-TB(LF)(SN)

Part No 40FLZ-RSM2-R-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 40POS 0.50MM R/A
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Actuator Material Polyamide (PA6T), Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Natural
Actuator Color Black
Win Source Part Number 21010-40FLZ-RSM2-R-TB(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 40FLZ-RSM2-R-TB(LF)(SN) CAD Model

Description

Description

The 40FLZ-RSM2-R-TB(LF)(SN) connector is a versatile, reliable component designed for optimal connectivity in varied electronic setups. Its robust nature ensures long-lasting performance, even in demanding environments, making it suitable for a broad range of applications.

Features and Benefits

  • Reliable electrical connections.
  • Space-efficient design for compact devices.
  • Lead-free compliant, promoting environmental safety.
  • High mechanical integrity.

Applications/Projects

  • Mobile devices.
  • Networking equipment.
  • Medical devices.
  • Home automation systems.

Additional Details

This connector’s innovative design ensures ease of installation and maintenance, addressing both current and future connectivity demands across a wide range of applications.
