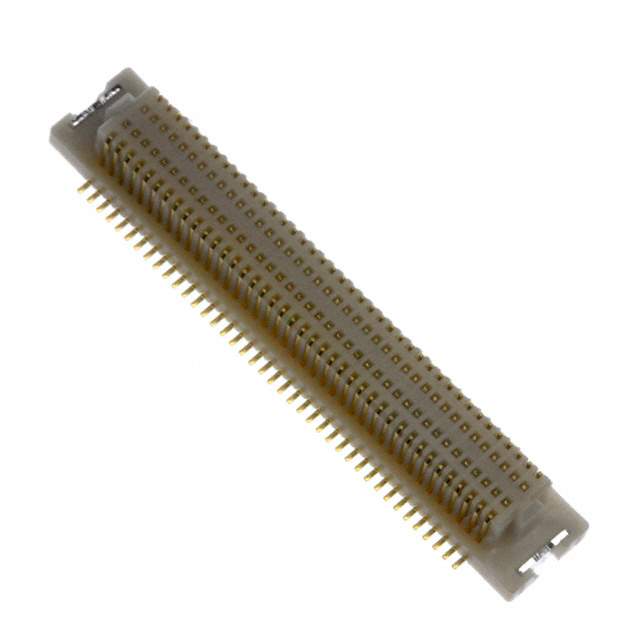

The 80R-JMDSS-G-1-TF(S) is a rectangular connector manufactured by JST Sales America Inc. This connector is part of the JMD series, known for its compact design and reliable performance in wire-to-board connections. It is commonly used in a wide range of electronic equipment.

Applications

• Wire-to-Board Connections
• Signal and Power Transmission
• Consumer Electronics
• Industrial Equipment
• Automotive Electronics

Features

• Series: JMD
• Number of Contacts: 80
• Pitch: Typically 2.0 mm
• Termination Style: SMT (Surface Mount Technology)
• Housing Material: High-temperature thermoplastic

Benefits

• Reliable Connection: Provides a secure and stable electrical connection between wires and a printed circuit board.
• High-Density Packaging: Compact design allows for efficient use of board space.
• Automated Assembly: SMT termination is suitable for automated assembly processes.
• Durable Construction: High-quality materials ensure long-term reliability.
• Versatile Use: Can be used in a wide range of applications due to its robust design and reliable performance.

Additional Details

The 80R-JMDSS-G-1-TF(S) connector's datasheet contains detailed mechanical and electrical specifications, including voltage and current ratings, contact resistance, insulation resistance, and operating temperature range. It provides precise dimensional drawings and recommended PCB layout patterns for proper mounting. The connector's materials are selected for optimal electrical performance and resistance to environmental factors. This component is typically RoHS compliant, indicating adherence to environmental standards by restricting hazardous substances.
