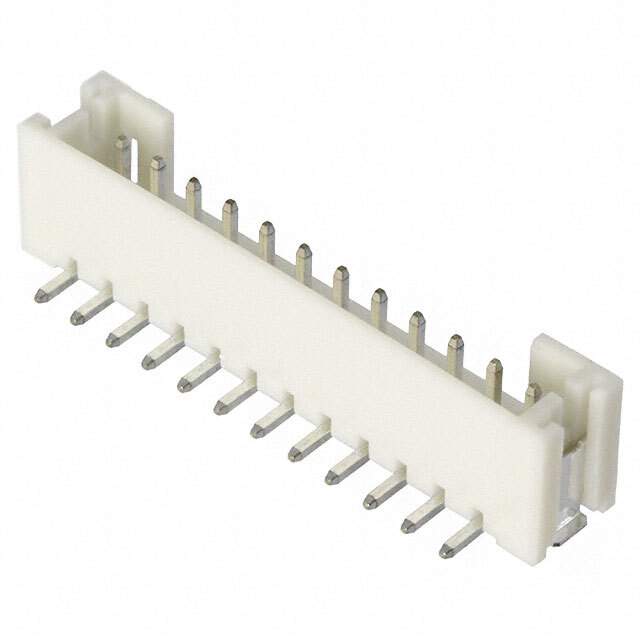

B12B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B12B-PH-SM4-TB(LF)(SN)

Part No B12B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER PH TOP 12POS 2MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series PH
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Win Source Part Number 752047-B12B-PH-SM4-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Family Name PH
Introduction Date October 18, 2005
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian B12B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. PH series connector is a rectangular connector header with male pins.

  • Positions: 12
  • Loaded Positions: All
  • Pitch: 0.079” (2.00mm)
  • Voltage Rating: 100V
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Shrouded: 4 Walls
  • Mounting Type: Surface Mounted
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Color: Natural
  • ECCN: EAR99
  • RoHS Compliant: Yes

The connector is ideal for use in various electronic devices that require high-quality connectors.
