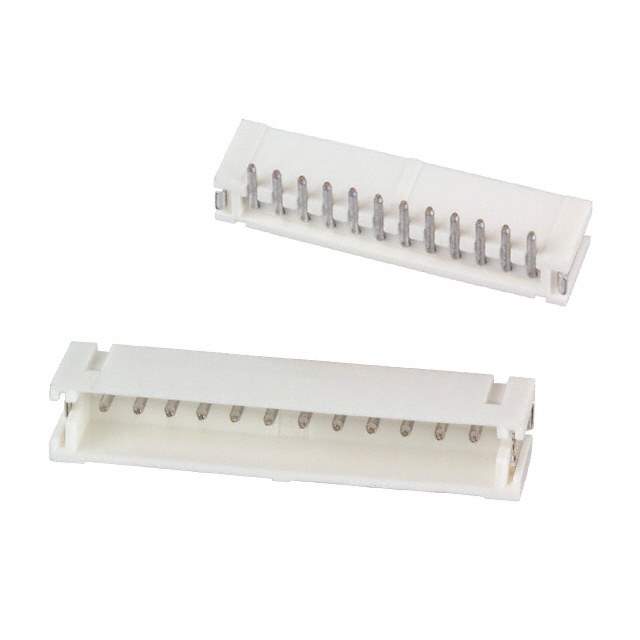

B12B-ZR-SM4-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B12B-ZR-SM4-TF(LF)(SN)

Part No B12B-ZR-SM4-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 12POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.197" (5.00mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 6.4mm
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808935-B12B-ZR-SM4-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B12B-ZR-SM4-TF(LF)(SN) CAD Model

Description

The 808935-B12B-ZR-SM4-TF(LF)(SN), manufactured by JST Sales America Inc., is a 12-position SMD header connector with a solder retention feature.

  • Positions: 12
  • Mounting Type: SMD
  • Retention: Solder
  • Contact Type: Male Pin
  • Voltage Rating: 50V
  • Shrouding: 4 Wall
  • Contact Shape: Circular
  • Insulation Material: Polyamide (PA6T), Nylon 6T, Glass-Filled
  • Pitch-Mating: 0.059" (1.50mm)
  • Category: Connectors and Interconnects
  • Popularity: Medium
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
  • Current Rating: 1A
