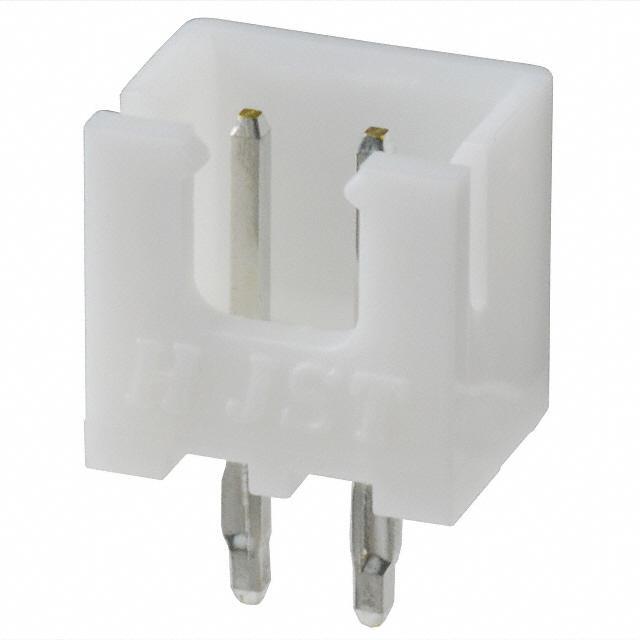

B2B-XH-A

Part No B2B-XH-A
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER XH TOP 2POS 2.5MM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.50mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Win Source Part Number 67272-B2B-XH-A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B2B-XH-A CAD Model

Description

Overview

The B2B-XH-A is a high-quality, reliable connector designed to cater to a wide range of electronic applications. Known for its durability and performance, it is a popular choice among engineers and technicians for both commercial and industrial uses.

Features and Benefits

  • High Durability: Engineered for long-term use with robust materials, ensuring a high degree of reliability.
  • Compact Design: The space-saving design enables it to be used in compact circuits.
  • Excellent Connectivity: Ensures stable and efficient electrical connections between components.

Applications

  • Consumer Electronics
  • Home Appliance Manufacturing
  • Telecommunications
  • Industrial Machinery

Additional Details

This connector is designed to fit seamlessly in various project requirements, offering versatility and adaptability across different environments.
