Same model may have multiple batches, images only for reference.

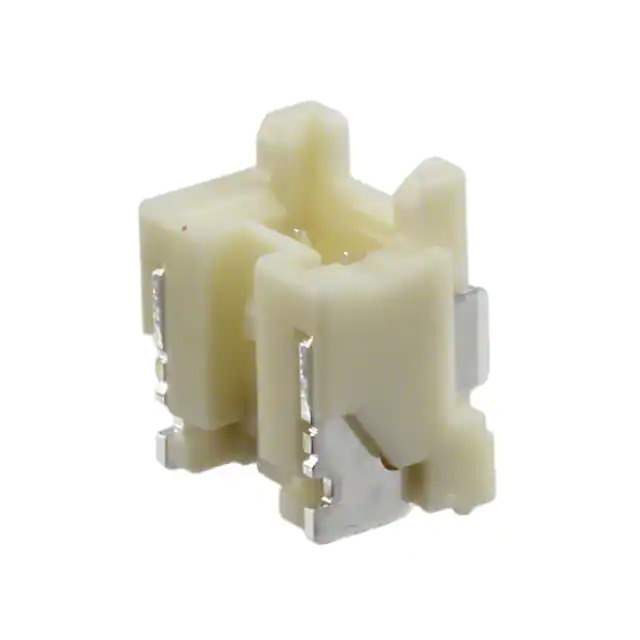

BM02B-PASS-1-TFT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM02B-PASS-1-TFT(LF)(SN)

Part No BM02B-PASS-1-TFT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 2POS 2MM / Connector Header Surface Mount 2 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.1mm, 16mm, 16.2mm
Base Product Number BM02B-PA
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 864352-BM02B-PASS-1-TFT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM02B-PASS-1-TFT(LF)(SN) CAD Model

Description

The BM02B-PASS-1-TFT(LF)(SN) is a 2-position male pin header from JST Sales America Inc.

  • Positions: 2
  • Series: PA
  • Features: Board Guide, Pick and Place, Solder Retention
  • Termination: Solder
  • Locking: Locking Ramp
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Shrouded: 4 Walls
  • Product Status: Active
