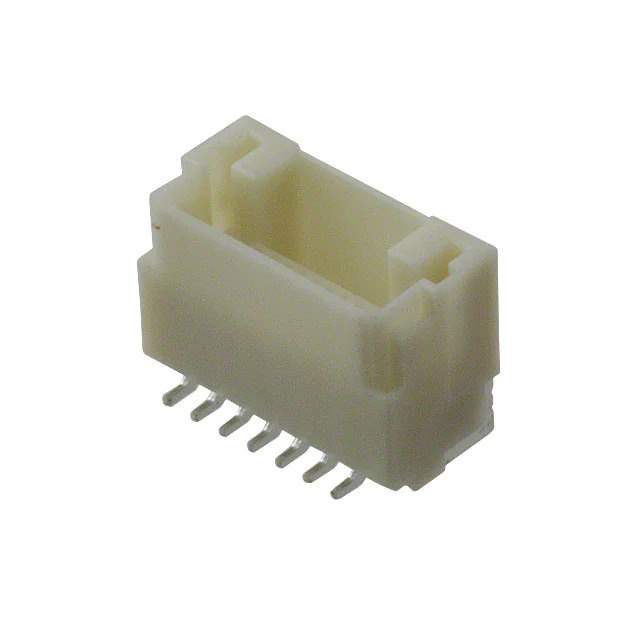

BM07B-NSHSS-TBT (LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM07B-NSHSS-TBT (LF)(SN)

Part No BM07B-NSHSS-TBT (LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 7POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series NSH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.236" (6.00mm)
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place Cap, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 7.8mm
Base Product Number BM07B-NS
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849338-BM07B-NSHSS-TBT (LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM07B-NSHSS-TBT (LF)(SN) CAD Model

Description

The 849338-BM07B-NSHSS-TBT (LF)(SN) is a male pin header connector from the NSH series.

  • Positions: 7
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Material: Copper Alloy
  • Contact Finish: Tin
  • Mounting: Surface Mount
  • Design: Shrouded 4-Wall
  • Pitch: 0.039" (1.00mm)
  • Mated Stacking Height: 7.8mm
  • Operating Temperature: -25°C to 85°C
