Same model may have multiple batches, images only for reference.

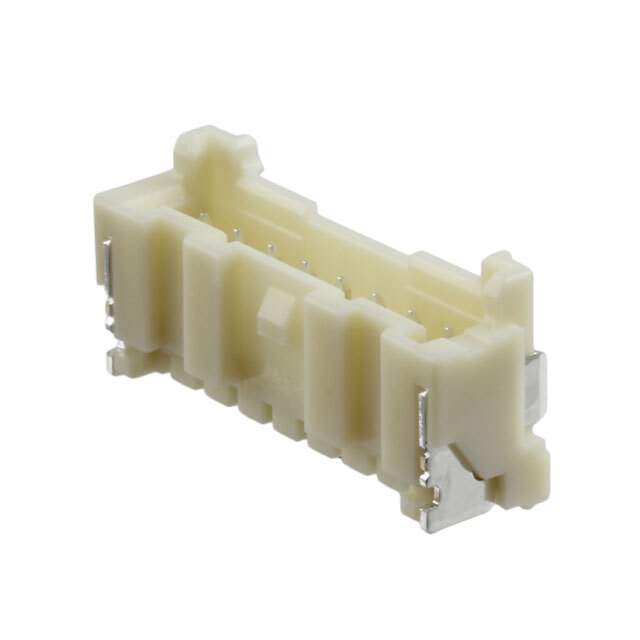

BM08B-PASS-1-TFT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM08B-PASS-1-TFT(LF)(SN)

Part No BM08B-PASS-1-TFT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 8POS 2MM / Connector Header Surface Mount 8 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PA
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11.1mm, 16mm, 16.2mm
Base Product Number BM08B-PA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2643-1,455-2643-2,455-2643-6,(D)BM08B-PASS-1-TFT(LF)(SN),BM08BPASS1TFTLFSN,BM08B-PASS-1-TFT (LF) (SN)
Standard Package 500
Win Source Part Number 1049451-BM08B-PASS-1-TFT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BM08B-PASS-1-TFT(LF)(SN) CAD Model

Description

The BM08B-PA is a connector component that belongs to the PA series manufactured by JST Sales America Inc.

  • Series: PA
  • Connector Type: Male Pin Header
  • Row Count: 1
  • Positions: 8
  • Current Rating: 3A
  • Operating Temperature: -25°C to 85°C
  • Supply and Demand: Limited
